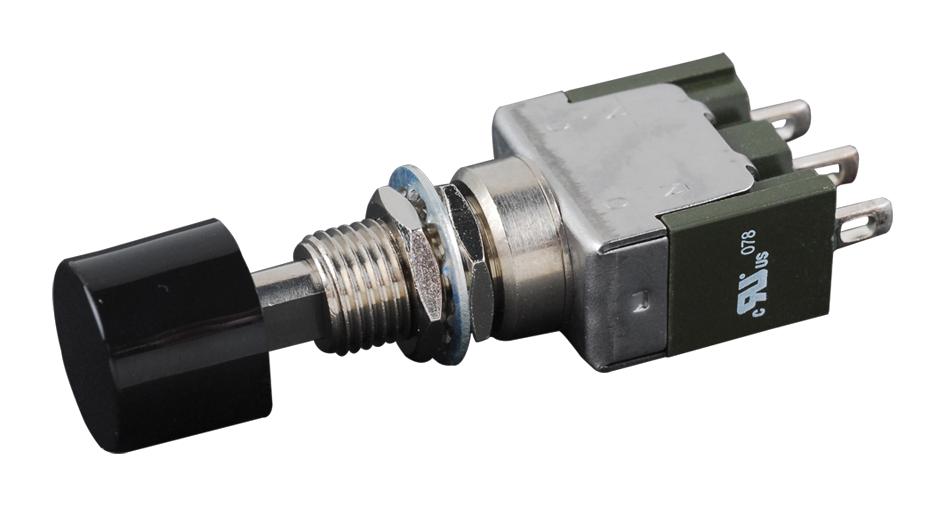

NKK Switches MB2065SS1W01CA Miniature Pushbutton Switch
The Series MB2000 miniature pushbuttons are designed for reliable switching in control panels and machinery, featuring a compact Bushing Mount design with optional splashproof features. These switches employ an over-center actuator mechanism that reduces sparking and enhances circuit longevity. The high torque bushing construction prevents rotation during installation, while epoxy sealed terminals resist contamination. Suitable for applications requiring up to 6A at 125V AC or 3A at 250V AC, they offer multiple configurations including momentary, alternate, and various plunger types, with robust materials ensuring durability and safety.
NKK Switches MB2065SS1W01CA Miniature Pushbutton Switch Specifications:
- Electrical Ratings: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum for splashproof models, 100,000 for others
- Electrical Life: 25,000 operations minimum for silver, 50,000 for gold
- Operating Temperature Range: -30°C to +85°C
- Terminal Type: Solder lug, quick connect, wirewrap, or extended PC
- Material: Brass with nickel plating or stainless steel for case; epoxy sealed terminals
- Mounting Torque: 1.5Nm for double nut, 0.7Nm for single nut
- Environmental Resistance: Humidity 90-95% for 96 hours @ 40°C, vibration 10-55Hz
- Standards: UL recognized, CSA certified, UL case coatings UL94V-0
Buy the Buy NKK Switches Series MB2000 Part Number MB2065SS1W01CA Online
Order the NKK Series MB2000 miniature pushbutton switch today online to ensure reliable control panel operation. Designed for durability with epoxy sealed terminals and high torque bushings, these switches support ratings up to 6A at 125V AC and feature optional splashproof versions. Perfect for industrial, automation, and machinery controls, they offer multiple plunger and terminal options, meeting UL and CSA standards. Enhance your system with high-quality, durable switches that guarantee performance and safety in demanding environments.
Buy NKK Switches Series MB2000 MB2065SS1W01CA now and experience unmatched reliability and performance in control applications.
Frequently Asked Questions
Where can I buy NKK Switches MB2065SS1W01CA?
You can click on the BUY or RFQ button to purchase MB2065SS1W01CA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065SS1W01CA?
You can download the MB2065SS1W01CA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065SS1W01CA?
NKK Switches
