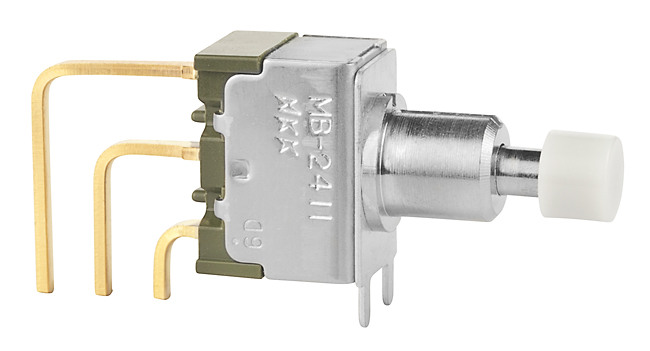

NKK Switches MB2411A2G40FB Pushbutton Switch
This miniature pushbutton switch is designed for momentary operation, ideal for electronic applications requiring a compact, reliable, and easy-to-assemble user interface component. It features snap-action mechanism, various mounting options including PC mount with brackets, and different actuation options such as illuminated models. Rated at 0.4VA max @ 28V AC/DC and 3A @ 125V AC, it employs gold or silver contact materials for high performance. The switch offers customizable bushings, terminal configurations, and color caps, suitable for diverse control and automation systems.
NKK Switches MB2411A2G40FB Pushbutton Switch Specifications:
- Contact Material: Gold over Silver, Silver over Silver
- Ratings: 3A @ 125V AC, 0.4VA max @ 28V AC/DC
- Mounting: PC mount with brackets, right-angle or vertical
- Bushing Options: Smooth with Keyway, D Flat, or Reinforced Bracket
- Physical Dimensions: Bushing sizes 0.280" (7.1mm), 0.350" (8.9mm), 0.425" (10.8mm), 0.750" (19.05mm)
- Housing Material: Polyamide, Cap Colors: Black, White
- Terminal Types: Straight with or without Reinforced Bracket, right-angle, reverse circuit
- Hardware: Hex nuts, lockwashers, optional locking rings, Brass nickel-plated and zinc/chromate steel
- Switch Type: Snap-action, momentary, pushbutton with push or toggle action
- Additional Features: Illuminated versions available, multiple actuation and circuit options
Buy the NKK Series MB2400 Pushbutton: MB2411A2G40FB
Order the NKK Series MB2400 pushbutton switch online today and enhance your electronic control systems with a compact, high-quality, and versatile component. Designed for reliable momentary operation, it offers a range of mounting, contact, and actuation options suitable for automation, instrumentation, and user interface applications. With easy assembly and superior contact ratings, this switch ensures your project’s durability and performance. Purchase now to benefit from fast shipping and dependable performance in all your control panel needs.
Buy NKK Series MB2400 pushbutton switch now and experience unmatched reliability and performance in your electronics and automation projects.
Frequently Asked Questions
Where can I buy NKK Switches MB2411A2G40FB?
You can click on the BUY or RFQ button to purchase MB2411A2G40FB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411A2G40FB?
You can download the MB2411A2G40FB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411A2G40FB?
NKK Switches
