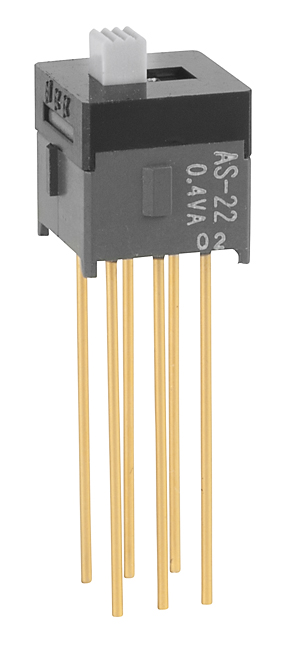

NKK Switches AS22AW Subminiature Slide Switch
This is a subminiature slide switch designed for compact electronic applications. It features a small form factor suitable for tight spaces and precise control.
NKK Switches AS22AW Subminiature Slide Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC maximum, applicable range 0.1mA to 0.1A @ 20mV to 28V
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Withstanding Voltage: 500V AC for 1 minute
- Mechanical Life: Minimum 50,000 operations
- Pretravel: 0.082 inches (2.1 mm); Overtravel: 0.016 inches (0.4 mm); Total Travel: 0.098 inches (2.5 mm)
- Material: Glass fiber reinforced polyamide, carbon blended polyacetal
- Contacts: Tin plated phosphor bronze, gold plated options
- Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 192 hours @ 40°C
- Vibration Resistance: 10-60Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration in different directions
- Soldering: Wave soldering recommended, manual soldering for specific models, non-process sealed, hand cleaning advised
- Standards & Certifications: Not UL recognized or CSA certified
Buy the Buy NKK Series AS Subminiature Slide Switch Part Number AS22AW Online
Experience reliable switching with the NKK Series AS22AW subminiature slide switch, designed for space-constrained electronic projects. Perfect for low-voltage logic circuits, it offers high contact stability, durability of over 50,000 cycles, and easy soldering. Its compact size fits perfectly into tight spaces, making it ideal for custom electronics, instrumentation, and control systems. Order online today to ensure fast delivery and get the highest quality switch for your precise electronic applications.
Get NKK AS22AW today—built for space-saving precision and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches AS22AW?
You can click on the BUY or RFQ button to purchase AS22AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS22AW?
You can download the AS22AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS22AW?
NKK Switches
