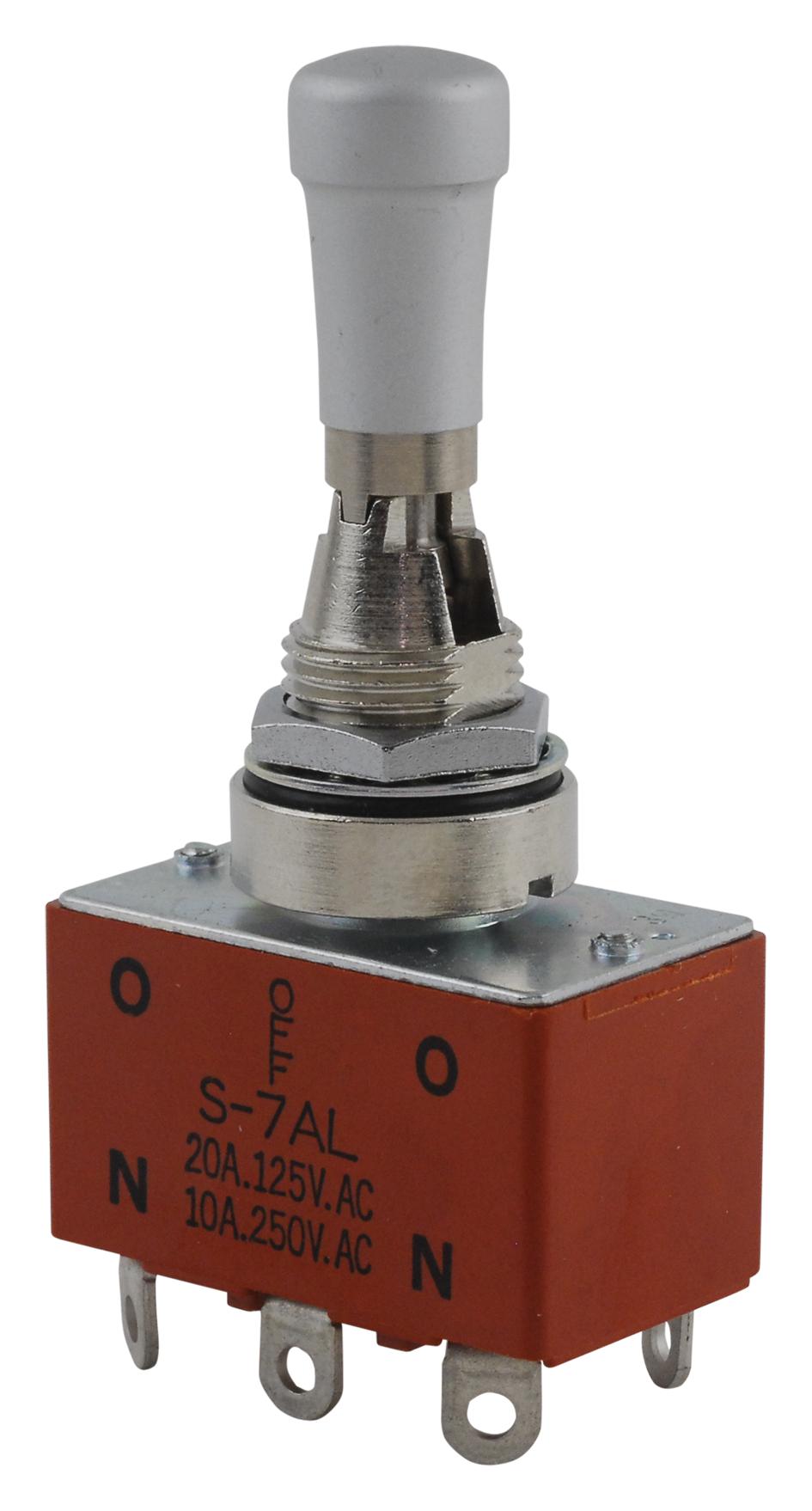

NKK Switches S7AL Industrial Toggle Switch
Medium capacity standard size toggles designed for reliable switching in control panels and industrial equipment. Series S toggles feature various configurations, including single and double pole options with solder lug, quick connect, and locking lever. They operate at 125VAC to 250VAC with resistive and inductive loads, offering durability up to 50,000 cycles. Sealed models meet IP67 standards, suitable for splashproof applications. Constructed with high-quality materials like brass, phenolic resin, steel, and silver plated contacts, ensuring excellent performance across wide temperature ranges from -10°C to +70°C. Compatible with panel thicknesses up to 4.0mm, these switches conform to UL, CSA certifications, and are ideal for industrial automation and control systems.
NKK Switches S7AL Industrial Toggle Switch Specifications:
- Electrical Capacity: 125VAC to 250VAC; resistive & inductive loads, up to 50,000 operations
- Materials: Brass with chrome plating, phenolic resin, steel with zinc plating, silver-plated copper contacts
- Operating Temp Range: -10°C to +70°C for most models, splashproof models up to 30°C to +70°C
- Sealing Standard: IP67 for splashproof & lever lock panel seal models
- Panel Thickness Compatibility: Up to 4.0mm (0.158 inches)
- Terminal Types: Solder lug, quick connect, locking lever with panel seal
- Mechanical Life: Minimum 30,000 cycles, up to 50,000 for certain models
- Standards & Certifications: UL Recognized, CSA Certified
- Torque for Mounting: 1.47Nm (13 in-lbf) for single nut, 2.94Nm (26 in-lbf) for double nut
- Soldering & Mounting: Manual soldering, standard hardware includes knurled nuts, lockwashers, and backup nuts
- Toggle Operation: Single pole, double pole, various configurations with standard angles and positions
- Additional Features: Splashproof boot assemblies available, suitable for heavy-duty control applications
Buy the NKK Series S Toggle Switch: S7AL
Purchase the NKK Series S toggle switch S7AL online today for dependable operation in tough industrial environments. This switch offers resistive and inductive load handling, operating up to 50,000 cycles with IP67 sealing for splashproof protection. Made from high-quality materials such as brass, phenolic resin, steel, and silver-plated contacts, it ensures stable performance across a wide temperature range. Suitable for panel thicknesses up to 4.0mm, easy to install, and certified by UL and CSA, making it ideal for industrial automation, machinery, and control systems.
Buy NKK Series S toggle switch S7AL now and experience unmatched reliability and high durability for industrial automation and control panels.
Frequently Asked Questions
Where can I buy NKK Switches S7AL?
You can click on the BUY or RFQ button to purchase S7AL from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S7AL?
You can download the S7AL datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S7AL?
NKK Switches
