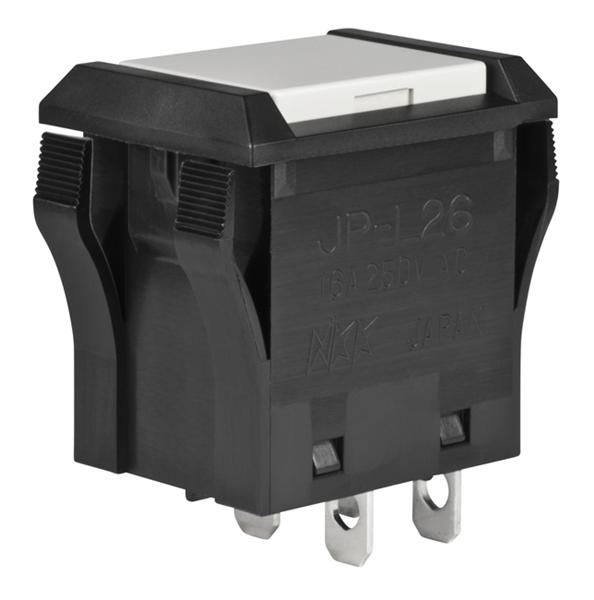

NKK Switches JPL26BB Push Button Switch
This panel-mounted push button switch is designed for power control applications, featuring high insulation resistance, dust resistance with interior seal, and certifications for international standards. Its rugged construction includes a molded polyamide housing with UL94V-0 flame resistance, enabling reliable operation in industrial environments. The switch supports resistive loads up to 10A at 125/250V AC, with a snap-action contact mechanism, IP-rated dust resistance, and a double pole configuration for enhanced functionality. Suitable for applications requiring high dielectric strength and durability in demanding conditions.
NKK Switches JPL26BB Push Button Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JPM models, 16A @ 125/250V AC for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts and case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Environmental Operating Temp Range: -10°C to +70°C (+14°F to +158°F)
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G in multiple directions
- Housing Material: Polyamide (UL94V-0)
- Contact Material: Silver alloy
- Terminals: Brass with silver plating
- Certifications: UL, VDE recognized
- Standards: UL94V-0 flammability, UL, VDE approvals
- Sealing: Dust resistant inner seal
- Switch Rating: 10A @ 125/250V AC with TV-5 rating, 16A at 125/250V AC with TV-8 rating
Buy the Buy Internationally Approved Pushbuttons Series JP Part Number JPL26BB Online
Purchase the NKK Series JP push button switch JPL26BB online today for reliable power control in industrial environments. This dust-resistant, panel-mounted switch features a robust polyamide housing, silver alloy contacts, and certified standards including UL and VDE. Designed for resistive loads up to 16A, it supports high inrush currents with rugged construction and excellent dielectric strength. Enjoy quick delivery and easy online ordering—perfect for demanding applications requiring durable switches with international approvals and high safety standards.
Get NKK Series JP push button switch JPL26BB today—built for high inrush current handling, dust resistance, and long-lasting durability.
