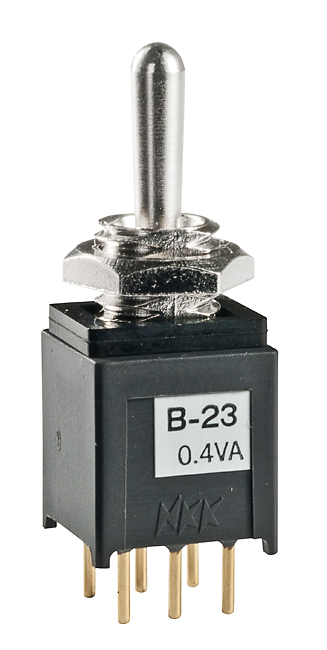

NKK Switches B23A1P Subminiature Toggle Switch
The B23A1P toggle switch is a compact, subminiature device designed for electronic control panels and portable equipment. It features a sealed body construction that prevents contamination and ensures durability. This switch operates reliably at logic-level voltages, with a resistive load capacity of 0.4VA maximum at 28V AC/DC. Its small size allows space-saving installation while maintaining excellent electrical performance, including low contact resistance and high insulation resistance, making it ideal for low-voltage, low-current applications in various electronic devices and automation systems.
NKK Switches B23A1P Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for ON-None-On & On-Off-On circuits
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained) for long paddle toggle
- Materials: Nickel plated brass, carbon blended polyamide, nitrile butadiene rubber
- Operating Temperature Range: -30°C to +85°C
- Vibration & Shock Resistance: Vibration at 10-55Hz, Shock of 50G
- Mounting: Panel Seal with optional threaded bushing, maximum panel thickness 2.2mm
- Soldering & Cleaning: Wave and manual soldering recommended, automated cleaning suitable
Buy the Buy NKK Switches Toggle Switch Part Number B23A1P Online
Purchase the NKK B23A1P toggle switch online to ensure reliable operation in your electronic devices and control panels. Its sealed body prevents contamination, making installation and maintenance straightforward. Designed for low-voltage, low-current logic circuits, this compact switch offers excellent electrical and mechanical durability, with up to 100,000 operations. Ideal for space-constrained environments, its corrosion-resistant materials and high insulation resistance ensure long-lasting performance. Order now and improve your product's reliability with this high-quality, safety-compliant toggle switch.
Buy NKK Switches B23A1P now and experience unmatched reliability and space-saving performance in your electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches B23A1P?
You can click on the BUY or RFQ button to purchase B23A1P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B23A1P?
You can download the B23A1P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B23A1P?
NKK Switches
