NKK Switches MS13AFW01 Miniature Slide Switch
This miniature slide switch offers reliable switching in compact electronic assemblies, suitable for soldering and PC mounting with various terminal options. It features durable silver or gold contacts for power and logic applications, ensuring high contact reliability and resistance to contaminants. The switch operates within an temperature range of -30°C to +85°C, with high dielectric strength and insulation resistance, making it ideal for industrial, automation, and control applications. Its compact size and robust construction enable consistent performance in demanding environments.
NKK Switches MS13AFW01 Miniature Slide Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms for gold
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute, 1,500V AC between contacts & case
- Operating Temp Range: -30°C to +85°C
- Humidity: 90-95% @ 40°C for 96 hours
- Vibration: 10-55Hz, 1.5mm amplitude, 1 minute, three directions
- Shock: 50G acceleration in multiple directions
- Material: Glass fiber reinforced PBT resin, stainless steel, phosphor bronze with tin or nickel plating
- Soldering: Wave and manual soldering ( Profile A ), not process sealed
- Standards & Certification: UL94V-0 rated, recognized by UL and CSA when ordered appropriately

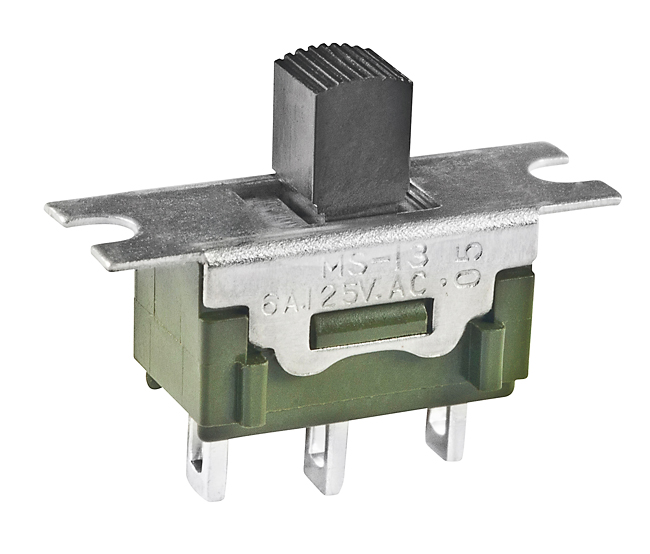

Buy the NKK MS13AFW01 – Reliable miniature slide switch for industrial applications
Order the NKK miniature slide switch now for industrial and automation use, featuring silver and gold contacts, various mounting options, and high durability. Designed for soldering and PC mounting, it ensures reliable switching in compact spaces. Perfect for controlling power and logic circuits with high contact reliability and resistance to environmental contaminants. Make your purchase today and enhance the performance of your electronic projects with NKK's trusted switches, combining quality, durability, and versatility for demanding applications.
Buy NKK MS13AFW01 now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy NKK Switches MS13AFW01?
You can click on the BUY or RFQ button to purchase MS13AFW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MS13AFW01?
You can download the MS13AFW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MS13AFW01?
NKK Switches
