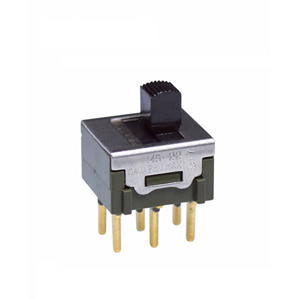

NKK Switches MS22ANG03 Miniature Slide Switch
This miniature slide switch is ideal for soldering and PCB applications, offering reliable electrical contact and precise manual operation. Designed for compact electronic devices, it features high durability, with zinc alloy contacts rated at 6A @ 125V AC and 3A @ 250V AC, and gold contacts rated for 0.4VA max at 28V. The switch is built with UL94V-0 rated epoxy sealed terminals and features various mounting options including straight and bracketed PC mounts. It ensures high insulation resistance, dielectric strength, and long mechanical and electrical life, suitable for demanding electronic switching needs.
NKK Switches MS22ANG03 Miniature Slide Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations
- Electrical Life: 25,000 operations for silver contacts; 50,000 for gold contacts
- Contact Resistance: Silver max 10 milliohms, Gold max 20 milliohms
- Operating Temp Range: -30°C to +85°C
- Vibration: 10-55Hz, 1.5mm amplitude, 2 hours in three directions
- Shock: 50G acceleration
- Materials: Epoxy sealed terminals, stainless steel, phosphor bronze with silver or gold plating
- Flammability: UL94V-0 rated
- Soldering: Wave and manual soldering recommended
- Dimensions: Actuator width 0.323 inches (8.2mm), height varies depending on mounting type
- Compliance: UL, CSA recognized when ordered with marking
