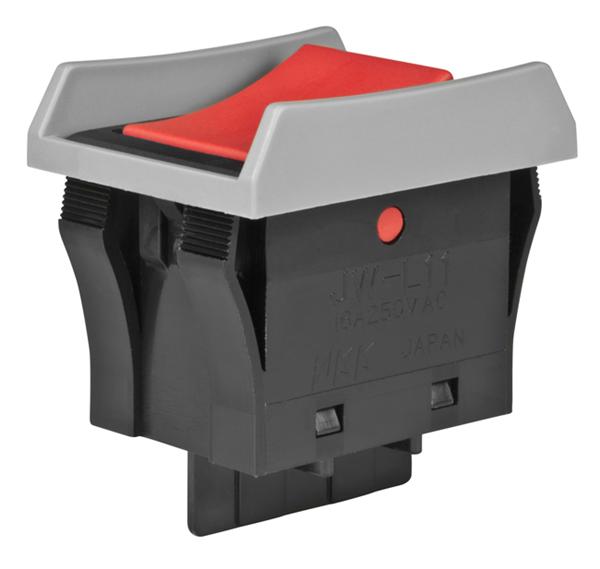

NKK Switches JWL11BCAH Power Rocker Switch
This high inrush power rocker switch supports 10 and 16 Amp loads, featuring a snap-in panel mount for easy installation. Constructed with heat-resistant resin housing meeting UL94V-0 standards, it includes an interior dust seal, external insulating barriers, and molded terminals sealed with epoxy to prevent contamination. Suitable for environments requiring high electrical capacity and durability, it complies with UL, CSA, and VDE standards. The switch offers multiple contact ratings, supporting resistive and motor loads with high dielectric and insulation resistance, ideal for industrial and electronic applications.
NKK Switches JWL11BCAH Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC, 16A @ 125/250V AC, 10A @ 30V DC, 5A @ 72V DC
- Contact Resistance: Max 10 milliohms (JWM, JWMW), Max 20 milliohms (JWL, JWLW)
- Insulation Resistance: Min 1,000 megohms @ 500V DC
- Dielectric Strength: 2,000V AC between contacts (1 min), 4,000V AC between contacts and case (1 min)
- Mechanical Life: Min 25,000 operations
- Electrical Life: Min 25,000 operations
- Operating Temperature Range: -25°C to +70°C (JWM, JWL); -25°C to +85°C (JWMW, JWLW)
- Panel Seal: IP67 (JWMW, JWLW), dust resistant (others)
- Housing Material: Polyamide (UL94V-0), case and housing
- Terminal Type: Solder lug/quick connect, .110” (2.8mm) or .187” (4.75mm)
- Mounting: Snap-in rocker with gasket, panel thickness 0.031” to 0.134”
- Standards & Certifications: UL, CSA, VDE approval; compliant with flammability standards
- Environmental Ratings: Dust resistant, IP67 for panel seal versions, operates at 10° to +70°C (JWMW, JWLW)
- Dimensions: Refer to typical switch dimensions, panel cutouts compatible with panel thickness from 0.039” to 0.157”
Buy the NKK Series JW Power Rocker Switch: JWL11BCAH
Purchase the NKK Series JW Power Rocker Switch JWL11BCAH online today and enjoy seamless integration into your electronic or industrial control systems. Designed with robust sealed terminals, high electrical capacity, and a durable fire-resistant casing, this switch ensures long-lasting performance while resisting dust and environmental challenges. Its easy snap-in mounting and compliance with international safety standards make it perfect for reliable operation in demanding environments. Order now to upgrade your control panels with a trusted, high-capacity switch that guarantees safety and efficiency.
Get NKK Series JW Power Rocker Switch JWL11BCAH today—built for high inrush capacity, durability, and reliable electrical performance in demanding applications.
Frequently Asked Questions
Where can I buy NKK Switches JWL11BCAH?
You can click on the BUY or RFQ button to purchase JWL11BCAH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL11BCAH?
You can download the JWL11BCAH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL11BCAH?
NKK Switches
