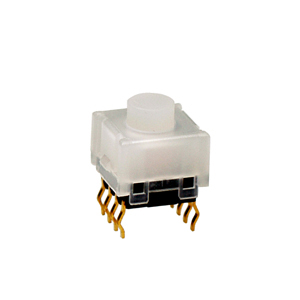

NKK Switches NP0115HG03LCF Subminiature Pushbutton Switch
This subminiature illuminated pushbutton switch is designed for PCB mounting, featuring a compact size and integrated LED illumination for enhanced visibility. It offers a long stroke of 1.5mm, with options for single or bicolor LED lighting. The switch has gold-plated contacts for high reliability and crimped terminals for secure mounting. Suitable for low-voltage, low-current circuits, it supports resistive loads of up to 0.4VA at 28V AC/DC. Its robust construction and illumination make it ideal for control panels, electronic devices, and industrial applications requiring clear, visual status indication.
NKK Switches NP0115HG03LCF Subminiature Pushbutton Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 250V DC
- Dielectric Strength: 250V AC min for 1 minute
- Operating Temperature Range: -25°C to +50°C
- Stroke: 1.5mm (.059")
- Actuator Material: Silicon rubber
- Base Material: Polycarbonate resin
- Movable Contact Material: Silver over nickel with gold plating
- Stationary Contacts Material: Brass with gold plating
- Switch Terminals: Crimped terminals, straight PC
- Soldering: Wave soldering up to 270°C for 6 sec, manual up to 390°C for 4 sec
- Certifications: Not UL or CSA tested
- Illumination: Fully integrated LED, single or bicolor, with various color options
- Packaging: Packaged in partitioned tray, 50 pcs per stick
- Environmental: Operates in 25°C to +70°C depending on illumination, humidity up to 95% for 96 hours
Buy the NKK NPO1 – Reliable Subminiature Pushbutton for Industrial Applications
Enhance your control panels with the NKK Series NPO1 subminiature illuminated pushbutton switch. Designed for PCB mounting, it features a robust build, integrated LED lighting for clear visibility, and gold-plated contacts for maximum reliability. Perfect for low-voltage, low-current circuits, this compact switch offers a long stroke of 1.5mm and is available in various LED colors and legends. Its secure design simplifies installation, making it ideal for industrial, electronic, and automation applications. Order online today for dependable performance!
Order your NKK Series NPO1 switch today and ensure reliable LED illumination and high-quality operation in your electronic control projects.
Frequently Asked Questions
Where can I buy NKK Switches NP0115HG03LCF?
You can click on the BUY or RFQ button to purchase NP0115HG03LCF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part NP0115HG03LCF?
You can download the NP0115HG03LCF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of NP0115HG03LCF?
NKK Switches
