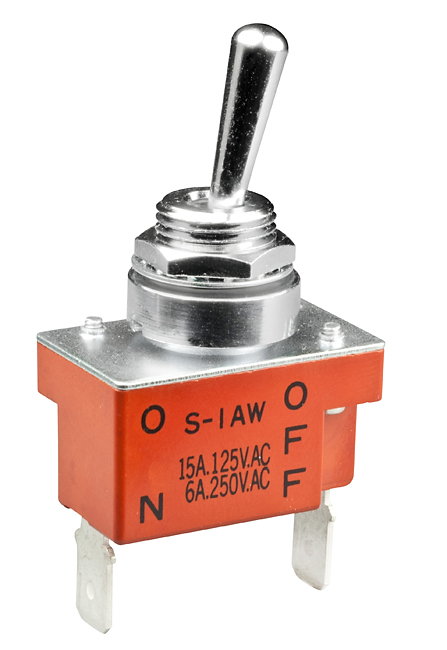

NKK Switches S1AWF Toggle Switch
This is a standard-sized toggle switch designed for dependable switching in various electronic applications. It features multiple configurations including single pole, double pole, and quick connect options, supporting resistive and inductive loads up to 20A at 125V and 250V. Constructed with durable materials like brass with chrome plating, phenolic resin, and zinc-plated steel, it offers environmental sealing up to IP67, robust mechanical life, and reliable electrical performance. Suitable for panel mounting with specified torque, it meets UL and CSA standards for safety and certification, ensuring reliable operation in demanding environments.
NKK Switches S1AWF Toggle Switch Specifications:
- Electrical Capacity: Up to 20A at 125V and 250V resistive load
- Materials: Brass with chrome plating, phenolic resin, zinc-plated steel, silver-plated copper
- Operating Temp Range: 30°C to +70°C for splashproof models; -10°C to +70°C for others
- Sealing: IP67 for splashproof & lever lock panel seal models
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: 30,000 to 50,000 operations depending on model
- Torque: 1.47Nm (13 lbf.in) for single nut, 2.94Nm (26 lbf.in) for double nut
- Mounting Panel Thickness: 0.158" (4.0mm)
- Soldering Temperature & Time: Refer to manufacturer specifications
- Standards & Certifications: UL Recognized, CSA Certified
Buy the Buy Top-Quality Toggle Switch Part Number S1AWF Online
Discover the reliability and versatility of our toggle switch, ideal for various electronic applications. Designed with durable materials, it offers IP67 sealing, high electrical capacity, and certified standards. Easy to install with panel mounting compatibility, supporting resistive and inductive loads up to 20A at 125V and 250V. Its robust design ensures long mechanical and electrical life, making it suitable for demanding environments. Buy online now for quick delivery and dependable performance in industrial, commercial, or DIY projects.
Order your Series S toggle switch S1AWF today — engineered for long-lasting reliability, environmental sealing, and certification compliance to enhance your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches S1AWF?
You can click on the BUY or RFQ button to purchase S1AWF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S1AWF?
You can download the S1AWF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S1AWF?
NKK Switches
