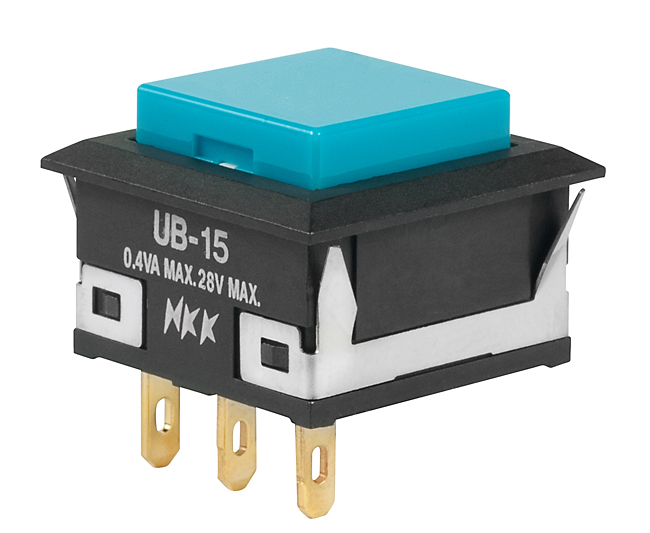

NKK Switches UB15KKG01NG Low Profile Illuminated Pushbutton
This low-profile illuminated pushbutton switch is designed for PCB mounting and soldering, providing reliable momentary contact with full face or spot illumination options. Ideal for space-constrained electronic equipment, it features a quick-make, quick-break contact mechanism, durable materials like polycarbonate and stainless steel, and various LED color choices including red, green, white, and blue. It offers robust electrical ratings of 5A at 125/250V AC and gold contacts with low contact resistance, making it suitable for industrial, automation, and control panel applications. The switch ensures long mechanical and electrical life, with easy installation and compliance with safety standards.
NKK Switches UB15KKG01NG Low Profile Illuminated Pushbutton Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Resistive Power Level: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC contact to case for 1 minute
- Mechanical Life: Minimum 1,000,000 operations
- Electrical Life: Minimum 200,000 operations
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Housing Material: UL94V-0 rated polycarbonate, stainless steel, phosphor bronze
- Contact Material: Silver alloy or copper with gold plating
- Mounting Type: PCB snap-in mounting, panel thickness 0.039” to 0.126” (1.0mm to 3.2mm)
- Switch Travel: Total 0.091” (2.3mm), Pre-travel 0.067” (1.7mm), Overtravel 0.024” (0.6mm)
- Soldering: Manual or wave soldering profiles specified, hand cleaning recommended
- Certifications: UL Recognized, CSA Certified (order with markings)
- LED Features: Bright or super bright LEDs, available in multiple colors, with polarized circuit, and current limited via external resistor
- IP Rating: Not specified, but sealed terminals for protection against flux and contaminants
