NKK Switches S3AW Industrial Toggle Switch
Medium Capacity Standard Size Toggle switches are reliable industrial components designed for circuit control applications. Featuring resistive and inductive load capacity, these toggles support a range of voltages, including 125V, 250V, and 30V at various configurations like SPST, SPDT, and DPDT. Built with durable materials such as brass with chrome or tin plating, phenolic resin, and zinc-plated steel, they offer IP67 sealing for splashproof models, operating efficiently within -10°C to +70°C. Ideal for automation, manufacturing, and control panels requiring switch longevity and robust performance.
NKK Switches S3AW Industrial Toggle Switch Specifications:
- Electrical Capacity: 15A at 125V, 6A at 250V, 20A at 30V (resistive and inductive loads)
- Materials & Finishes: Brass with chrome or tin plating, phenolic resin, zinc-plated steel
- Operating Temperature Range: -10°C to +70°C for all models, splashproof models meet IP67 standard
- Mechanical Life: Minimum 30,000 operations, 50,000 for other models
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 2,000V AC for 1 minute
- Mounting Torque: 1.47 Nm (13 in-lbf) for single nut, 2.94 Nm (26 in-lbf) for double nut
- Maximum Panel Thickness: 4.0 mm (0.158 inches)
- Standard Certifications: UL, CSA recognition when ordered with markings, recognized with /U or /CUL suffix
- Terminals: Solder lug, quick connect, with sealing and optional hardware for splashproof versions

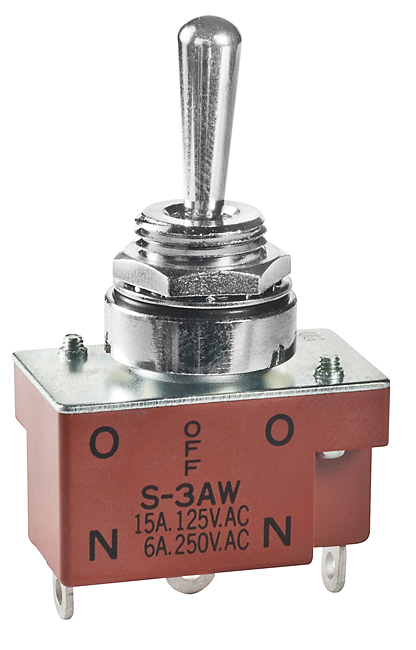

Buy the Buy NKK Medium Capacity Toggle Switch Part Number S3AW Online
Purchase the NKK S3AW toggle switch online now to ensure reliable circuit control with high capacity switching capabilities. Designed for industrial automation, it features durable construction with brass and zinc plating, supporting resistive and inductive loads up to 20A. The switch is IP67 sealed for splashproof protection and operates efficiently within -10°C to +70°C. Easy to install with panels up to 4mm thick, this switch is perfect for manufacturing, control panels, and automation systems requiring longevity and superior performance.
Get NKK S3AW toggle switch today—built for high load capacity, long-lasting durability, and reliable circuit control in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches S3AW?
You can click on the BUY or RFQ button to purchase S3AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S3AW?
You can download the S3AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S3AW?
NKK Switches
