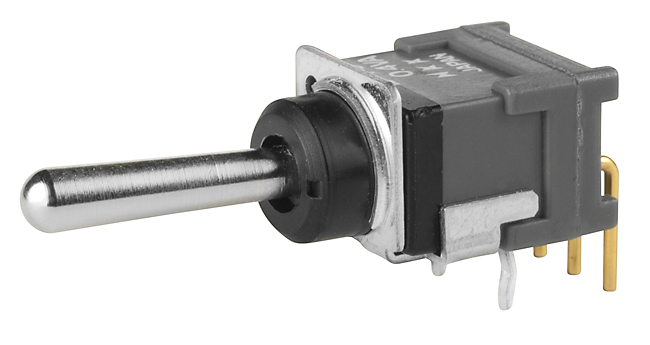

NKK Switches B15AH toggle switch
This is a subminiature toggle switch designed for precise and space-efficient electronic applications. It features a small form factor suitable for compact device assemblies and provides reliable switching performance.
NKK Switches B15AH toggle switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On & On-Off-On circuits
- Nominal Operating Force: 1.47N (long paddle, momentary), 1.18N (maintained)
- Contact Timing: 50,000 operations minimum
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass toggle, carbon blended polyamide bushing, nitrile butadiene rubber gasket, glass fiber reinforced polyamide case housing, support bracket, movable, stationary contacts, and terminals
- Operating Temperature Range: -30°C through +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm, 2 hours in 3 directions
- Shock: 50G acceleration in 6 directions
- Mounting Torque: 30-3.98 Ib*in for threaded bushing
- Soldering: Wave and manual soldering recommended, automated cleaning suitable
Buy the NKK B15AH – Reliable Toggle Switch for Industrial Applications
Enhance your electronic projects with the space-efficient and reliable toggle switch from NKK. Perfect for compact assemblies, this switch offers excellent electrical capacity, superior durability, and simple soldering, making it ideal for industrial, commercial, and custom applications. Buy online today and ensure your designs operate smoothly with top-rated performance, consistent switching, and long-lasting operation, all from a trusted manufacturer specializing in high-quality switches for professional use and demanding environments.
Order your NKK Series B B15AH toggle switch today and give your projects the dependable quality they deserve, ensuring precise control in space-constrained designs.
Frequently Asked Questions
Where can I buy NKK Switches B15AH?
You can click on the BUY or RFQ button to purchase B15AH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B15AH?
You can download the B15AH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B15AH?
NKK Switches
