NKK Switches S6A Toggle Switches
Medium Capacity Standard Size Toggles are reliable switches designed for industrial applications, offering many configurations such as Single Pole, Double Pole, and various connection types like solder lug, quick connect, and locking lever. Suitable for controlling resistive and inductive loads with high durability, these toggles meet UL and CSA standards for safety and quality. They feature chrome-plated brass, phenolic resin, and zinc-plated steel components, with environmental and installation specifications aligned for robust performance in diverse conditions. Ideal for automation, machinery, and control panel use with secure sealing and mounting options.
NKK Switches S6A Toggle Switches Specifications:
- Electrical Capacity (Resistive & Inductive Load): 15A to 20A at 125V/250V, 8A to 10A at 30V
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 30,000 to 50,000 operations depending on model
- Materials & Finishes: Brass with chrome plating, phenolic resin, steel with zinc plating, copper with silver plating, silver alloy capped on copper with silver plating
- Operating Temperature Range: 30°C through +70°C ( Splashproof models 10°C through +70°C)
- Sealing: Splashproof & lever lock panel seal models meet IP67 standard
- Mounting Torque: 1.47Nm (13 lbf-in) for single nut, 2.94Nm (26 lbf-in) for double nut
- Maximum Panel Thickness: 0.158” (4.0mm)
- Soldering Time & Temperature: Manual soldering; see profile A in supplement
- Standards & Certifications: UL, CSA recognized when ordered with appropriate markings
- Environment: Resistant to various conditions including splashproof configurations

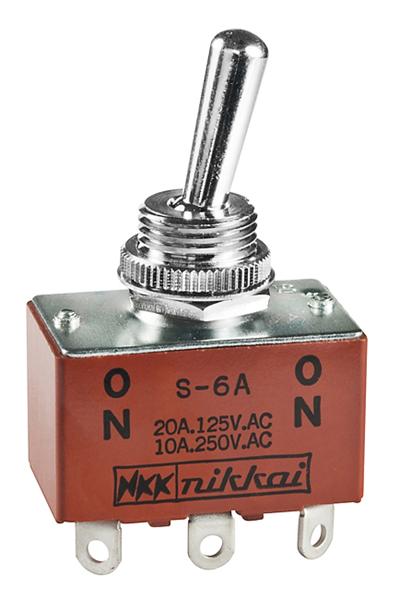

Buy the NKK Series S Toggle Switches Reliable Industrial Control Part Number S6A
Enhance your control panels with NKK Series S toggle switches, engineered for durability and safety in industrial environments. Featuring various configurations such as single pole, double pole, with solder lug, quick connect, and locking lever options, these switches are built to withstand high loads, environmental factors, and frequent operation. They meet UL and CSA standards, ensuring safety and quality compliance. Easy to install with secure sealing, they are ideal for automation, machinery, and control systems, providing reliable switching performance over extensive operational life spans, making them a smart choice for demanding industrial applications.
Order your NKK Series S toggle switch today and give your projects the dependable quality they deserve, ensuring robust operation in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches S6A?
You can click on the BUY or RFQ button to purchase S6A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S6A?
You can download the S6A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S6A?
NKK Switches
