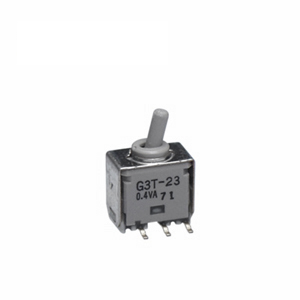

NKK Switches G3T23AP Ultra-Miniature Surface Mount Toggle Switch
This ultra-miniature toggle switch is engineered for surface-mount applications, offering high-density mounting solutions and lightweight construction. With a compact design weighing just 0.6 grams, it is ideal for handheld devices and small electronic equipment. Featuring robust seals, epoxy joints, and vapor phase reflow soldering compatibility, it ensures durability and reliable operation in low-voltage, low-current logic circuits. The switch has a 28° angle of throw, gold-plated contacts, and can withstand environmental stress conditions such as humidity, vibration, and shock, making it suitable for demanding electronic applications.
NKK Switches G3T23AP Ultra-Miniature Surface Mount Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.6N for momentary, 1.7N for maintained
- Angle of Throw: 28°
- Actuator Material: UL94V-0 polyphenylene sulfide
- Case Material: UL94V-0 polyphenylene sulfide
- Sealing Rings: Nitrile butadiene rubber
- Movable & Stationary Contacts: Phosphor bronze with gold plating
- Base & Terminals: UL94V-0 polyphenylene sulfide, epoxy-sealed terminals
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-500Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration in multiple directions
- Soldering: Reflow, manual, and automated cleaning compatible
Buy the Buy NKK Series G3T Toggle Switch Part Number G3T23AP Online
Purchase the NKK G3T23AP ultra-miniature surface mount toggle switch online today to ensure your electronic design benefits from high-density mounting, reliable operation, and excellent environmental resilience. Designed for low-voltage, low-current logic circuits, it features sealed construction, high durability, and compatibility with reflow soldering processes. Whether used in handheld devices, compact appliances, or complex electronics, this switch guarantees smooth operation, long life, and excellent stability. Order now for fast delivery and elevate your electronic assemblies with this compact, dependable switch.
Buy NKK G3T23AP toggle switch now and experience unmatched reliability, space-saving design, and durable switching performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches G3T23AP?
You can click on the BUY or RFQ button to purchase G3T23AP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part G3T23AP?
You can download the G3T23AP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of G3T23AP?
NKK Switches
