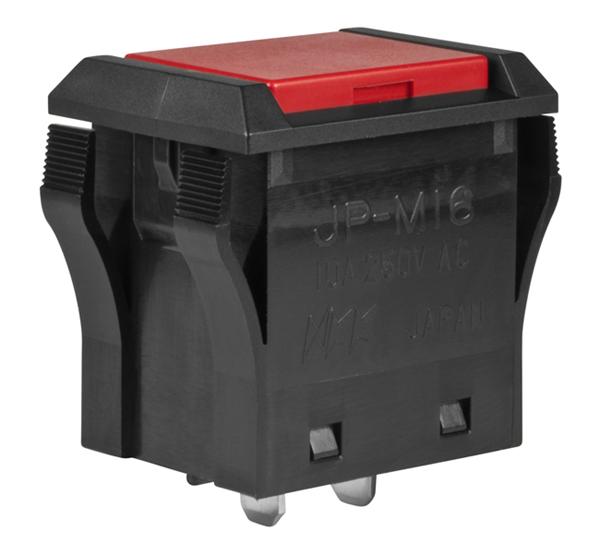

NKK Switches JPM16BC Power Pushbutton Switch
A power push button switch designed for user control applications. Suitable for various electronic devices requiring a reliable on/off operation. It features industry-leading TV ratings, dust resistance with an interior PPS seal, and a snap-action contact mechanism. Constructed with heat-resistant resin housing meeting UL94V-0 standards, it handles large inrush currents certified for TV-5 and TV-8 ratings. The switch provides high insulation resistance, dielectric strength, and is optimized for durability with a mechanical life of at least 25,000 operations. It is suitable for harsh environments with temperature resistance from -10°C to +70°C and humidity endurance of 96 hours at 40°C.
NKK Switches JPM16BC Power Pushbutton Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JPM models, 16A @ 125/250V AC for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 min, 4,000V AC minimum between contacts and case for 1 min
- Mechanical Life: 25,000 operations minimum
- Environmental Temperature Range: -10°C through +70°C
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 1 min, 3 directions for 2 hours
- Shock: 50G acceleration tested in all directions
- Housing Material: Polyamide UL94V-0, with heat resistant resin outer case
- Seal: Dust resistant inner seal of PPS
- Terminal Type: Molded-in, epoxy sealed terminals
- Certifications: UL, VDE approved
- Ratings: TV-5 rated 10A @ 125/250V AC, TV-8 rated 16A @ 125/250V AC
- Plunger Options: Flat Cap with Barrier Flange, Plunger with Flat Flange
- Color Options: Ivory, Gray, Black, Red
- Dimensions: Refer to TYPICAL SWITCH DIMENSIONS, with panel cutout of 0.187 inch (4.75mm)
