NKK Switches S823 Heavy-duty Toggle Switch
High Capacity Standard Size Toggle switch is designed for reliable control in heavy-duty applications. Featuring robust materials such as phenolic resin and brass with nickel or chrome plating, it offers excellent durability. The switch supports resistive and inductive loads up to 30A and withstands a wide operating temperature range from 10°C to +70°C. Its rugged construction includes UL, CSA, and cULus recognition, ensuring safety and compliance. Suitable for panel mounting with varying maximum panel thicknesses, the toggle provides multiple configurations like DPST and DPDT with standard hardware hardware for secure installation.
NKK Switches S823 Heavy-duty Toggle Switch Specifications:
- Electrical Capacity: 30A resistive & inductive loads, DC 600V, AC 600V
- Materials: Brass with nickel or chrome plating for contacts, phenolic resin for insulators, steel case with chromate plating
- Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Maximum Panel Thickness: 2.0mm to 4.0mm depending on model
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 to 50,000 operations depending on model
- Certifications: UL, CSA, cULus recognized with marking
- Pole Configurations: DPST, DPDT, 3PST with screw lug terminals
- Mounting Hardware: Includes standard face hex nut, locking ring, backup hex nut, optional splashproof boot
- Switch Type: High capacity toggle, rated for heavy-duty industrial use

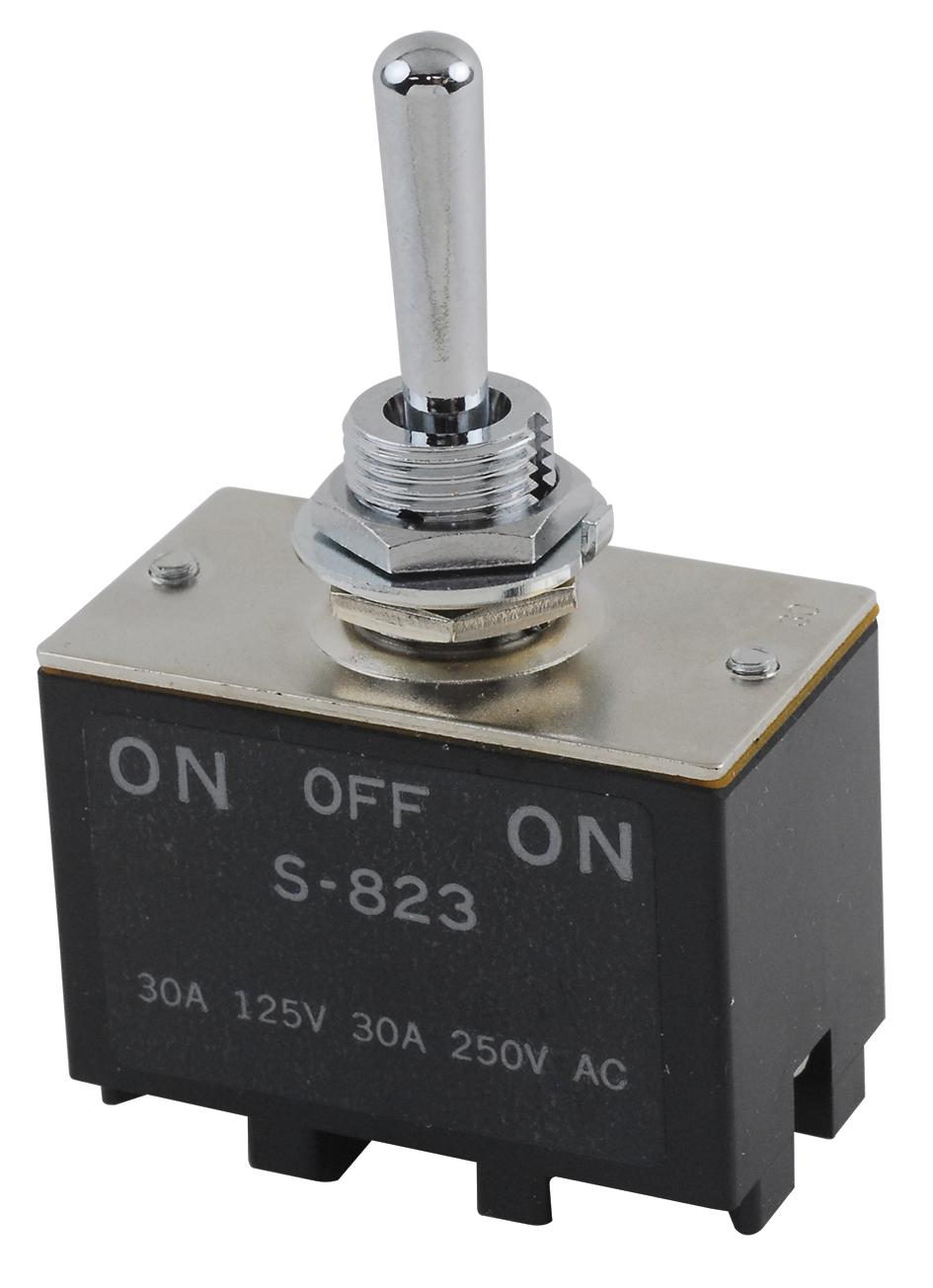

Buy the Buy Series S Toggle Part Number S823 Online
Purchase the Series S toggle switch S823 online today and enjoy high-quality performance suitable for industrial and control panel applications. Engineered with durable phenolic resin and brass components, it offers reliable operation over 50,000 mechanical cycles and supports resistive and inductive loads up to 30A. This switch features UL, CSA, and cULus recognition for safety compliance, optional splashproof boot, and robust mounting hardware. Whether for automation, control systems, or machinery, this toggle ensures long-lasting service and easy installation, now available for direct purchase online.
Buy Series S toggle switch S823 now and experience unmatched durability, reliable load handling up to 30A, and industry-standard safety certifications.
Frequently Asked Questions
Where can I buy NKK Switches S823?
You can click on the BUY or RFQ button to purchase S823 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S823?
You can download the S823 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S823?
NKK Switches
