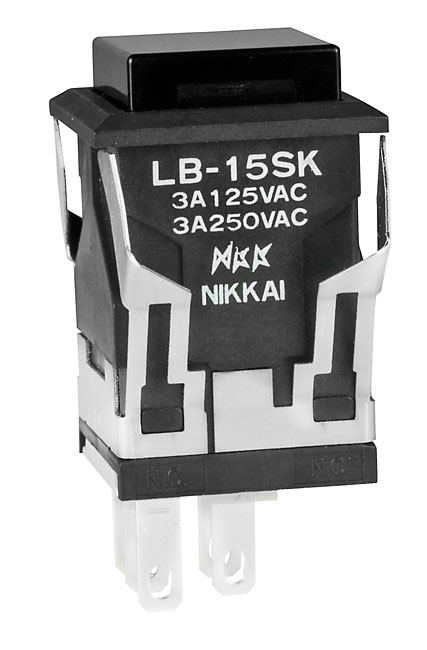

NKK Switches LB15SKW011CA Illuminated Pushbutton
The LB15SKW011CA is a standard size illuminated pushbutton with snap-in mounting designed for control panels and switch applications. It features bright LED illumination with diffusing optics for full surface lighting, corrosion-resistant materials, and a protective cover. The switch provides long electrical life, tactile feedback, and easy installation. Suitable for industrial automation, control systems, and machinery, it is available with various LED colors and options for nonilluminated or illuminated operation, ensuring reliable and clear visual status indication in various environmental conditions.
NKK Switches LB15SKW011CA Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Mounting: Snap-in
- Illumination: Bright LED, diffused for full surface glow
- LED Colors Available: Red, Amber, Green, Blue, White
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts, 100 milliohms maximum for gold
- Insulation Resistance: Minimum 200 megaohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained)
- Operational Force: Downward force on cap 3.92N, connector 52.95N
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Environmental Conditions: 95% humidity for 96 hours, vibration 50G
Buy the NKK LB15SKW011CA – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your automation and control panels with the NKK LB15SKW011CA illuminated pushbutton. Engineered for durability and visibility, it features full surface diffusion for bright LED illumination, easy snap-in mounting, and reliable electrical performance. Suitable for industrial environments, this switch offers long mechanical and electrical life, corrosion-resistant materials, and a wide temperature range. Whether for machinery, control systems, or automation projects, purchase this dependable pushbutton online today and ensure your equipment's signaling and operational clarity with ease and confidence.
Order your NKK Series LB15SKW011CA illuminated pushbutton today and give your control panels the dependable quality they deserve with bright LED illumination.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW011CA?
You can click on the BUY or RFQ button to purchase LB15SKW011CA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW011CA?
You can download the LB15SKW011CA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW011CA?
NKK Switches
