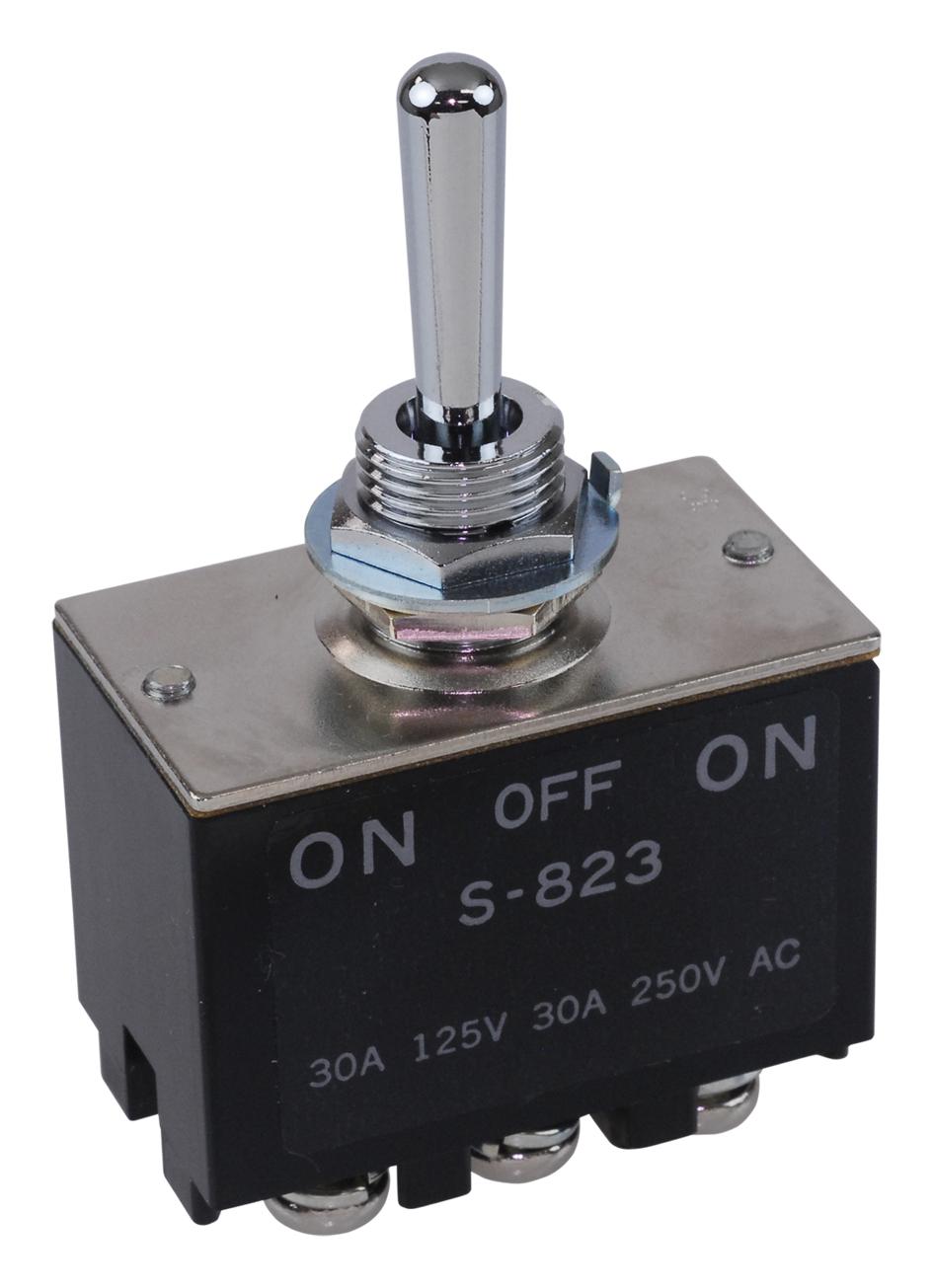

NKK Switches S823U High Capacity Industrial Toggle Switch
The S823/U is a high-capacity double-pole, double-throw industrial toggle switch with a chrome-plated brass toggle and bushing, and a melamine phenol case for durability. Designed for heavy-duty use, it features screw lug terminals for secure wiring, and a chrome-plated zinc steel cover that enhances corrosion resistance. The switch supports at least 50,000 mechanical operations and 25,000 electrical cycles, making it suitable for demanding applications. Its operating temperature range from -10°C to 70°C ensures reliable performance across various environments. Ideal for control panels and automation systems requiring robust switching components.
NKK Switches S823U High Capacity Industrial Toggle Switch Specifications:
- Electrical Capacity: 50A resistive, 30A inductive, 125V/250V; 25A resistive, 30A inductive, 30V/125V/250V
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Toggle Material: Chrome-plated brass
- Case Material: Melamine phenol
- Case Cover: Chrome-plated zinc steel
- Terminal Type: Screw lug
- Operating Temperature Range: -10°C to 70°C
- Maximum Panel Thickness: 0.079 inches (2.0mm)
- Mounting: Panel mount with screws
- Standards & Certifications: UL recognized, CSA certified when marked
- Dimensions: Suitable for panel cutout, typical mounting hardware included
- Color/Finish: Chrome-plated toggle with phenol case
Buy the NKK Series S High Capacity Toggle: S823U
Purchase the NKK Series S S823U toggle switch online today. Designed for industrial control panels, it offers high capacity, chrome-plated brass toggle, durable phenol case, and screw lug terminals for secure wiring. With a mechanical life of 50,000 operations and electrical life of 25,000 cycles, it is suitable for demanding environments. Operating from -10°C to 70°C, this switch ensures reliable performance and long-term durability. Perfect for automation, machinery, and control systems needing robust switching components.
Get NKK Series S S823U today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches S823U?
You can click on the BUY or RFQ button to purchase S823U from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S823U?
You can download the S823U datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S823U?
NKK Switches
