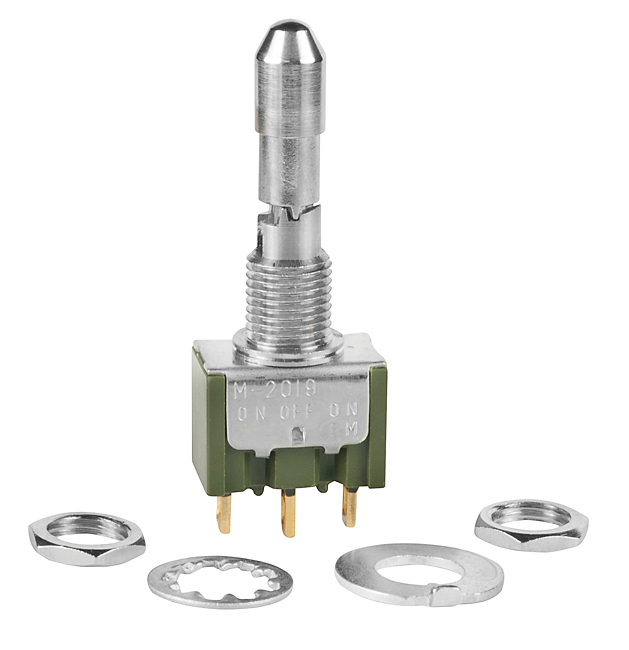

NKK Switches M2019LL1G01 Miniature Toggle Switch
This miniature toggle switch features multi-function capabilities ideal for precise electronic control in compact spaces. It offers high durability, multiple circuit options, and dual ratings for power and logic functions, making it suitable for diverse industrial and electronic applications. Designed with epoxy sealed terminals, high insulating barriers, and anti-rotation features, it ensures reliable operation and protection against contaminants and mechanical stress. Its robust construction supports extensive mechanical and electrical life, complying with safety standards for flammability, UL, and CSA certifications. Perfect for applications demanding dependable switching performance in limited spaces.
NKK Switches M2019LL1G01 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): Power Level 6A @ 125V AC & 3A @ 250V AC, Logic Level 6A @ 125V AC & 3A @ 250V AC, Dual rated options suitable for logic and power circuits.
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold.
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC.
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts and case for 1 minute.
- Mechanical Life: Minimum 50,000 operations for standard models; up to 100,000 for certain types.
- Electrical Life: 50,000 to 100,000 cycles depending on model and load.
- Temperature Range: -30°C through +85°C (-22°F through +185°F).
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm for 2 hours.
- Shock Resistance: 50G acceleration.
- Sealing: IP67 compliant splashproof bushing options with O-rings.
- Mounting Torque: 3.0Nm (26.55 Ibsin) for large bushing; 1.5Nm (13 Ibsin) for others.
- Environmental: Operating temperature from -30°C to +85°C, hermetically sealed terminals to prevent contaminants entry.
- Standards & Certifications: UL Recognized, CSA Certified, Flammability rating UL 94V-0, complies with IEC testament for IP67 sealing.
Buy the Buy NKK Switches Miniature Toggle Part Number M2019LL1G01 Online
Enhance your electronic and industrial control systems with this reliable miniature toggle switch. Featuring epoxy sealed terminals, dual ratings, and high durability, it ensures uninterrupted performance. Ideal for compact applications, it offers long mechanical and electrical life, IP67 sealing, and standard certifications. Order online today to secure a versatile, high-quality switch for your projects, enjoying quick delivery and expert support. Make your control solutions more dependable with this robust, versatile toggle switch.
Buy NKK Switches M2019LL1G01 now and experience unmatched reliability and performance in precise electronic switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches M2019LL1G01?
You can click on the BUY or RFQ button to purchase M2019LL1G01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2019LL1G01?
You can download the M2019LL1G01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2019LL1G01?
NKK Switches
