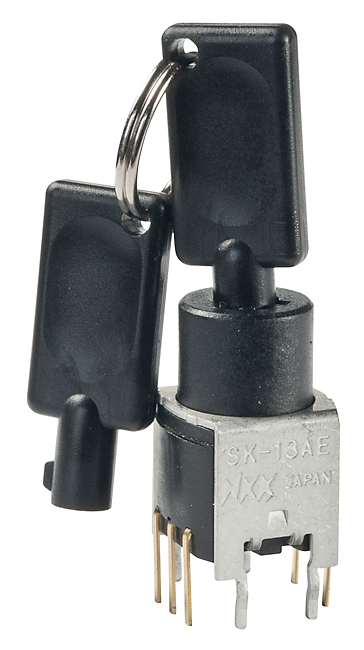

NKK Switches SK13AEG13 Miniature Antistatic Keylock
A miniature antistatic sealed keylock designed for secure access control in electronic enclosures and panels. Its high insulating housing withstands over 15 kilovolts of electrostatic discharge, providing effective antistatic protection. The totally sealed construction with internal o-ring, gasket, and insert-molded terminals ensures protection during automated processing and prevents entry of flux and contaminants. Compact size allows high-density mounting, and key-removable bushing with PC terminals facilitates secure PCB mounting. Features include gold-plated contact mechanisms, multiple positions, and compliance with industrial standards, making it ideal for low-voltage, logic-level circuit applications requiring reliable, corrosion-resistant locking solutions.
NKK Switches SK13AEG13 Miniature Antistatic Keylock Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Environmental Resistance: Withstands 15 kilovolts ESD, high humidity, and vibration
- Materials: Polyacetal housing, glass fiber reinforced polyester bushing, brass and copper contact materials
- Temperature Range: 25°C through +70°C (-13°F through +158°F)
- Ingress Protection: Totally sealed with internal o-ring and gasket
- Terminal Type: PC strip connectors, with insert-molded terminals
- Dimensions: Approximate diameter 9mm, compact subminiature size, suitable for high-density mounting
- Soldering & Cleaning: Recommended wave soldering, manual soldering, and automated cleaning per profile specifications
- Standards & Certifications: Not UL recognized or CSA certified, for low-voltage, logic circuits
- Switch Positions: Various options including ON-ON-ON, ON-ON for 3-position, 5-position configurations
Buy the Buy NKK Antistatic Process Sealed Keylock Part Number SK13AEG13 Online
Secure your electronic enclosures effortlessly with the NKK Miniature Antistatic Keylock. Designed for compact applications, it offers high dielectric strength, corrosion resistance, and reliable locking with multiple positions. Its sealed construction ensures protection against dust, flux, and contaminants during automated processing like wave soldering and cleaning. Ideal for low-voltage logic circuits and sensitive electronics, this keylock provides long-lasting durability, ease of installation, and enhanced security for your access control needs. Purchase online today to enhance your equipment’s safety and functionality.
Order your NKK Series SK Miniatureantistatic Keylock SK13AEG13 today and secure your electronic panels with this reliable, compact locking solution.
Frequently Asked Questions
Where can I buy NKK Switches SK13AEG13?
You can click on the BUY or RFQ button to purchase SK13AEG13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK13AEG13?
You can download the SK13AEG13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK13AEG13?
NKK Switches
