NKK Switches JS0308PP4 DIP slide switch
The DIP slide switch is a compact, reliable component designed for PCB applications. It features gold-plated contacts for high contact stability, self-cleaning twin sliding mechanism for smooth operation, and UL94V-0 rated materials for high insulation and arc resistance. Available in various positions and with different actuators, it supports low-current circuits with ratings such as 25mA at 24V DC. Its sturdy construction ensures durability with a mechanical life of at least 2,000 operations, making it ideal for precise electronic control and configuration.
NKK Switches JS0308PP4 DIP slide switch Specifications:
- Switching Rating: 25mA @ 24V DC, 0.1A @ 50V DC
- Contact Resistance: Max 50 milliohms
- Insulation Resistance: Min 100 megohms @ 500V DC
- Dielectric Strength: Min 500V AC for 1 minute
- Mechanical Life: At least 2,000 operations
- Total Travel: Slide actuator .031 inches (0.8mm), piano actuator .114 inches (2.9mm)
- Materials: Cover and base made of UL94V-0 rated glass fiber reinforced polyamide or PBT
- Contacts: Beryllium copper or phosphor bronze with gold plating
- Terminal Spacing: Conforms to .100 inches (2.54mm) PCB grid
- Operating Temp Range: ~25°C to +70°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration: 10-55Hz, amplitude 1.5mm
- Shock: 50G acceleration
- Soldering: Wave soldering profile recommended, manual soldering with Profile A
- Standards & Certifications: UL 94V-0 rated cover and base, not UL recognized or CSA certified
- Packaging: Stick-tube packaging with 46 or 24 pieces per tube depending on the model

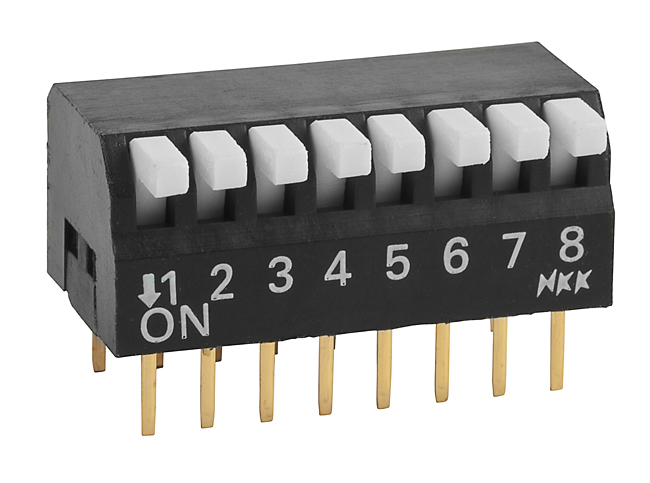

Buy the NKK Series JSO8 8-Position DIP Slide Switch: JSO308PP4
Discover the precision and reliability of the DIP slide switch for your PCB applications. Featuring gold-plated contacts, UL94V-0 rated materials, and a durable design supporting at least 2,000 operations, this switch ensures stable performance in low-current circuits. Its compact form factor and versatile configurations make it ideal for electronic control, configuration, and manual switching. Order your NKK Series JSO308PP4 today online and improve your circuit’s reliability and ease of use with this high-quality slide switch designed for demanding electronic projects.
Order your NKK Series JSO308PP4 DIP slide switch today and enhance your electronic projects with reliable PCB control components designed for durability.
Frequently Asked Questions
Where can I buy NKK Switches JS0308PP4?
You can click on the BUY or RFQ button to purchase JS0308PP4 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JS0308PP4?
You can download the JS0308PP4 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JS0308PP4?
NKK Switches
