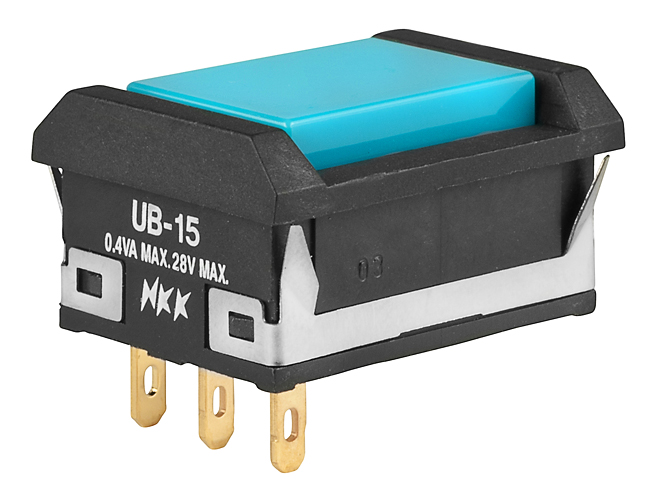

NKK Switches UB15NBKG01NG Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch compatible with PC mounting and soldering connections. Suitable for electronic panels and control applications. Designed for durability, it features bright LEDs of various colors and mounting options, including snap-in and built-in bezels. The switch offers high electrical ratings of 5A at 125/250V AC, with a mechanical life of over 1,000,000 operations. Its compact size makes it ideal for tight spaces in industrial, automation, and control systems, ensuring reliable performance and easy installation.
NKK Switches UB15NBKG01NG Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, Double Pole options available
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: Minimum 200 MΩ @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute
- Electrical Rating: 5A @ 125/250V AC; 0.4VA max @ 28V AC/DC
- Material: Polycarbonate housing, stainless steel actuator
- Operating Temperature Range: -20°C to +70°C for non-illuminated, -25°C to +50°C for illuminated
- Mounting: Snap-in or panel mount, panel thickness 0.039” to 0.126”
- LED Specifications: Bright, super bright, various colors, with forward voltage around 1.85V to 3.2V
- Life Expectancy: Over 1 million operations for mechanical life, over 200,000 for resistive load
- Soldering: Wave and manual soldering profiles based on UL standards
- Certifications: UL recognized, CSA certified as per ordering
- Dimensions: Typical size 0.51” x 0.51” (square), 0.69” x 0.39” (rectangular)
Buy the NKK UB15NBKG01NG – Reliable Pushbutton Switch for Industrial Applications
Discover the high-quality NKK illuminated pushbutton switch designed for industrial and control panel applications. Featuring bright LEDs in various colors, high electrical ratings, and durable construction, it ensures reliable operation over millions of cycles. Ideal for tight spaces with its compact size, this switch supports PCB mounting and soldering with ease. Upgrade your control systems today by purchasing this dependable switch online. Enjoy fast delivery and technical support. Make your project more efficient with this versatile and long-lasting control component.
Buy NKK UB15NBKG01NG now and experience unmatched reliability and performance in compact control solutions.
Frequently Asked Questions
Where can I buy NKK Switches UB15NBKG01NG?
You can click on the BUY or RFQ button to purchase UB15NBKG01NG from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15NBKG01NG?
You can download the UB15NBKG01NG datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15NBKG01NG?
NKK Switches
