NKK Switches SK14EG13 Sealed Keylock
This process sealed keylock offers high reliability and space-saving design for electronic panels. Its sealed body construction with disposable boot prevents contamination from flux, solvents, and other environmental factors. Made from brass alloy with bright nickel plating, it features a detent mechanism for crisp, positive switching action and key-removability in specific positions. Suitable for low-voltage applications, it withstands harsh conditions with an operating temperature range of ~25°C to +70°C, ensuring durable performance in industrial environments.
NKK Switches SK14EG13 Sealed Keylock Specifications:
- Material: Brass alloy with bright nickel plating
- Handle Material: ABS resin
- Dimensions: 0.51 inches diameter, body length approximately 1 inch
- Operating Temperature Range: -25°C to +70°C
- Environmental Resistance: 90-95% humidity for 240 hours @ 40°C
- Mechanical Life: 30,000 cycles
- Electrical Rating: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mounting: PCB with straight or right-angle terminals
- Key-Removable Positions: 2
- Number of Poles: Single Pole
- Switch Type: Double Throw (SPDT) with logic level contacts
- Detent: Spring-operated steel ball for positive, crisp actuation

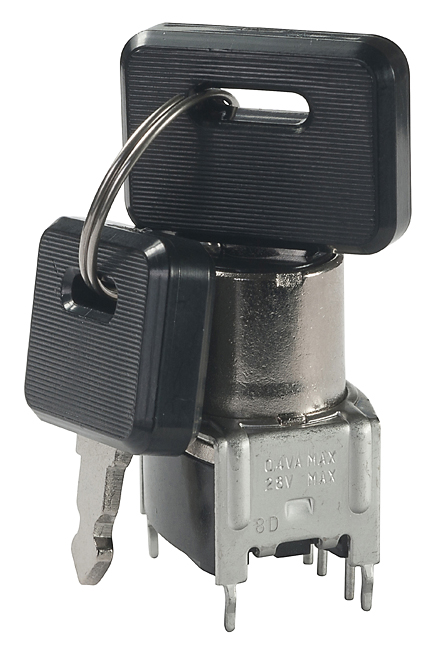

Buy the Buy NKK Series SK Process Sealed Keylocks Part Number SK14EG13 Online
Enhance your security and control with this compact, sealed keylock designed for electronic panels and enclosures. Made from corrosion-resistant materials, it features a reliable detent mechanism for precise operation and key removability for easy access. Its sealed body construction prevents ingress of flux and solvents, ensuring durability in harsh environments. Perfect for low-voltage circuitry, it withstands extreme conditions with temperature and humidity resistance. Order online now to ensure your security solutions are space-saving, dependable, and easy to install in industrial settings.
Order your NKK Series SK process sealed keylock SK14EG13 today and secure your electronic enclosures with a space-efficient, reliable locking solution.
Frequently Asked Questions
Where can I buy NKK Switches SK14EG13?
You can click on the BUY or RFQ button to purchase SK14EG13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK14EG13?
You can download the SK14EG13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK14EG13?
NKK Switches
