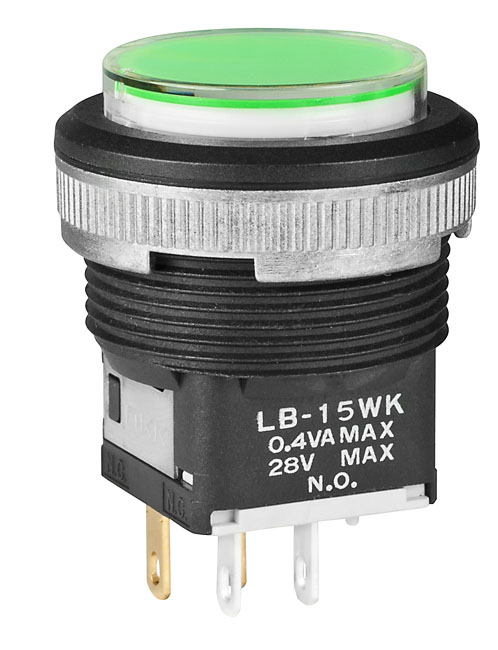

NKK Switches LB15WKG015F12JF Industrial Waterproof Pushbutton
The standard size illuminated pushbutton switch in series LB is designed for industrial control systems needing high reliability and durability. It features front panel relamping, bright diffusion filtering for full surface illumination, and options for LED lighting in multiple colors including red, green, blue, amber, and white. The switch offers a latchdown feature, audible and tactile feedback, and a snap-action contact mechanism for extended electrical life. Its IP65 sealed panel ensures protection against dust and water, making it suitable for wet or harsh environments and convenient installation with secure stainless steel clips.
NKK Switches LB15WKG015F12JF Industrial Waterproof Pushbutton Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case
- Electrical Life: 200,000 operations minimum for maintained circuit, 1,000,000 operations minimum for momentary circuit
- Mechanical Life: 100,000 operations minimum
- Operating Temperature Range: -25°C to +50°C for illuminated, 25°C to +70°C for non-illuminated
- Vibration & Shock Resistance: 10-55Hz at peak-to-peak amplitude of 1.5mm; 50G acceleration
- Sealing: IP65 according to IEC60529, NEMA 4 & 13 compatible
- Mounting Torque: 1.96Nm (17.35 lbs-in), with stainless steel clips for panel thicknesses from 1.0mm to 4.0mm
- Lighting: Bright and super bright LEDs available in multiple colors, with optional resistor for LED customization
- Switch Ratings: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Terminals: Solder lug and quick connect, epoxy sealed to prevent contamination
Buy the Buy Waterproof Illuminated Pushbutton Switch Part Number LB15WKG015F12JF Online
Order the waterproof illuminated pushbutton switch from NKK today to enhance your control panel with durable, IP65-sealed operation, full surface bright lighting, and easy mounting. Perfect for applications where environmental sealing and long-lasting performance are essential. This switch offers various LED colors, robust construction, and reliable electrical ratings, ensuring seamless integration into your industrial automation or machinery. Secure your control system's reliability now by purchasing this high-quality switch online and benefit from fast delivery and expert support.
Buy NKK LB15WKG015F12JF waterproof illuminated pushbutton switch now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches LB15WKG015F12JF?
You can click on the BUY or RFQ button to purchase LB15WKG015F12JF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WKG015F12JF?
You can download the LB15WKG015F12JF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WKG015F12JF?
NKK Switches
