NKK Switches M2011LL1W01C Miniature Toggle Switch

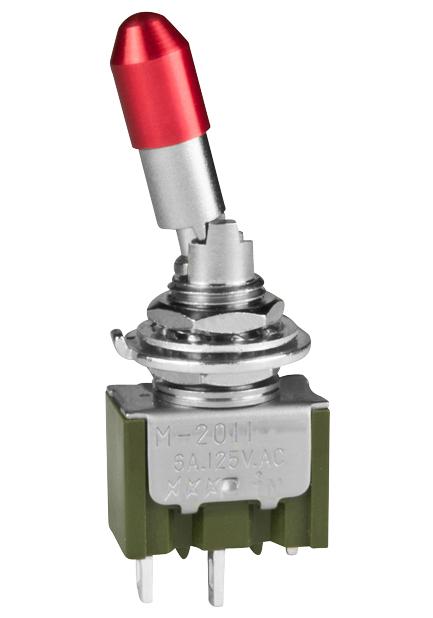

The M2011LL1W01-C is a red cap SPST non-illuminated miniature toggle switch with an ON-None-OFF functions, solder lug terminals, and a 5.1 mm diameter locking lever. It features a nickel-plated brass threaded bushing with a keyway for secure lever locking, a stainless steel frame, and tin-plated support bracket. Its anti-rotation design and high insulation barriers ensure reliable operation and circuit separation. The switch is IP67 rated for water and dust resistance, has a UL94V-0 flammability rating, withstands at least 25,000 operations, and functions well from -30°C to 85°C, making it ideal for industrial use.
NKK Switches M2011LL1W01C Miniature Toggle Switch Specifications:
- Electrical Rating: 6A @ 125V AC & 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver contacts
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Mechanical Life: 25,000 operations minimum
- Environmental Temperature Range: -30°C to 85°C
- Ingress Protection: IP67 for dust and water resistance with splashproof bushing
- Operating Temp Range: -30°C through +85°C (-22°F through +185°F)
- Material: Nickel-plated brass, stainless steel, epoxy-sealed terminals
- Bushing: 7.4 mm diameter, threaded with keyway, nickel-plated brass
- Switch Body: UL94V-0 rated polycarbonate
- Terminal Type: Solder lug
- Lever: Locking lever with a diameter of 5.1 mm
- Number of Poles: Single Pole (SPST)
- Switch Function: ON-None-OFF
- Durability: Minimum 25,000 operations
Buy the NKK Series M switch: SPST toggle switch M2011LL1W01C
Buy your NKK Series M miniature toggle switch M2011LL1W01C online today. Featuring a durable IP67 rating, epoxy-sealed terminals, and over 25,000 cycle life, it offers reliable performance suitable for industrial and rugged applications. Its anti-rotation toggle and high insulation barriers ensure secure operation and circuit separation. Designed for temperatures from -30°C to 85°C, with a nickel-plated brass bushing, stainless steel frame, and UL94V-0 polycarbonate body, this switch is perfect for demanding environments. Get yours now for high-quality electronic switching solutions.
Order your NKK Series M toggle switch M2011LL1W01C today and ensure reliable, durable switching performance for industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches M2011LL1W01C?
You can click on the BUY or RFQ button to purchase M2011LL1W01C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011LL1W01C?
You can download the M2011LL1W01C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011LL1W01C?
NKK Switches
