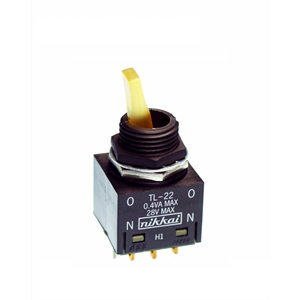

NKK Switches TL22SDAG015D Illuminated Toggle Switch
This standard-sized illuminated toggle switch is designed for easy panel mounting, ideal for various electrical applications requiring clear ON/OFF indication. It features a durable polycarbonate housing, high-quality contact materials such as silver or gold plating, and is rated for 6A at 125V AC, 3A at 250V AC, or 6A at 12V DC. Its built-in LED indicators are available in multiple brightness levels and colors like red, green, and blue, ensuring visibility in different environments. The switch complies with flammability and safety standards, offering reliable performance in industrial and control system settings.
NKK Switches TL22SDAG015D Illuminated Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 6A @ 12V DC
- LED Indicators: Red, Amber, Green, White, Blue; Brightness options available
- Housing Material: Polycarbonate
- Contact Material: Silver or Gold plated
- Dimensions: Toggle length options - 17.5mm (.689) and 11.0mm (.433)
- Operating Temperature Range: -10°C to +55°C
- Ingress Protection: IP65 (with optional exterior o-ring seal)
- Vibration Resistance: 10 ~ 55Hz, amplitude 1.5mm
- Shock resistance: 50G acceleration
- Mounting Torque: 98Nm maximum
- Standards & Certifications: UL recognized, IEC60529 IP65
- Durability: Minimum 50,000 operations for gold contacts, 25,000 for silver
- Dielectric Strength: 1,000V AC between contacts for 1 minute
- Insulation Resistance: 1,000 Megohms minimum at 500V DC
- Sealing: Optional exterior o-ring for panel seal
Buy the Buy NKK Fully Illuminated Toggle Switch Part Number TL22SDAG015D Online
Order the NKK illuminated toggle switch online today to enhance your control systems. Featuring durable polycarbonate housing, high-quality silver or gold contacts, and adjustable LED indicators in multiple colors, this switch ensures reliable operation up to 50,000 cycles. It’s rated for 6A at 125V AC and offers IP65 sealing for robust protection against dust and water. Ideal for industrial, automation, and electronic control panels, it provides clear visual ON/OFF indication and easy panel mounting for seamless integration.
Buy NKK TL22SDAG015D now and experience unmatched reliability and performance in control panel applications with bright LED indicators and durable construction.
Frequently Asked Questions
Where can I buy NKK Switches TL22SDAG015D?
You can click on the BUY or RFQ button to purchase TL22SDAG015D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part TL22SDAG015D?
You can download the TL22SDAG015D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of TL22SDAG015D?
NKK Switches
