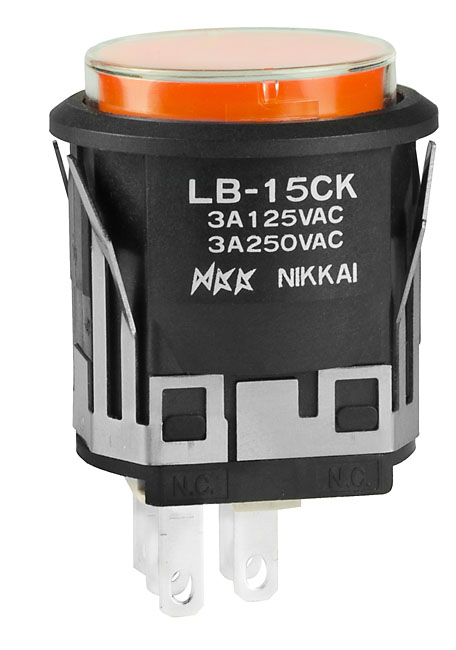

NKK Switches LB15CKW015D05JD Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting for straightforward installation and dependable operation. It includes options for various LED colors, lamp types, and housing materials, suitable for panel-mounted controls requiring bright surface illumination. The switch is rated at 3A @ 125/250V AC, with a compact design that ensures effective space utilization behind panels. It offers versions with panel seal, multiple legends, and optional accessories like protective guards. Ideal for industrial, machinery, and control panel applications requiring reliable, illuminated actuation with tactile feedback.
NKK Switches LB15CKW015D05JD Illuminated Pushbutton Specifications:
- Housing: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Solder Lug and Quick Connect
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts & case
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for maintained
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Pretravel: 0.059” (1.5mm), Overtravel: 0.059”, Total Travel: 0.118” (3.0mm)
- Environmental Resistance: 95% humidity for 96 hours @ 40°C, Shock resistance: 50G
- Mounting: Snap-in with stainless steel clips, panel thickness 1.0mm to 4.0mm
- Standards & Certifications: UL, cULus, CSA recognized when ordered with markings, panel sealed IP65 rated.
Buy the Buy NKK Switches Series LB Illuminated Pushbutton Part Number LB15CKW015D05JD Online
Secure your control panel with the reliable, easy-to-install illuminated pushbutton switch from NKK Switches. Featuring snap-in mounting, bright LED options, and robust electrical ratings, this switch is perfect for industrial machinery and control systems. Its compact design saves space while providing tactile feedback and long electrical life. Designed with high-quality materials, it withstands harsh environments, offers panel sealing up to IP65, and is certified for safety standards. Purchase online today for fast delivery and proven performance in demanding conditions.
Get NKK Switches LB15CKW015D05JD today—built for precision, quick mounting, and long-lasting durability for industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW015D05JD?
You can click on the BUY or RFQ button to purchase LB15CKW015D05JD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW015D05JD?
You can download the LB15CKW015D05JD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW015D05JD?
NKK Switches
