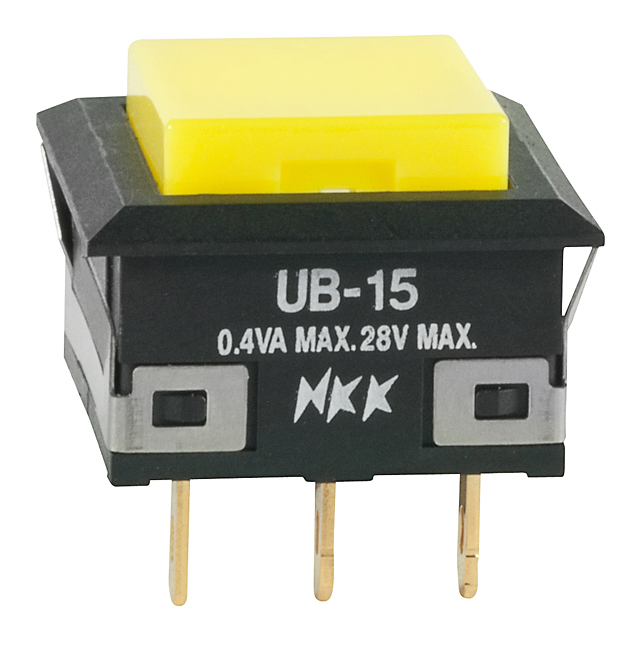

NKK Switches UB15KKG01NE Low Profile Pushbutton Switch
The low-profile illuminated pushbutton switch offers easy operation with bright LED illumination, making it ideal for compact control panels and electronic devices. Constructed with durable materials, it features a snap-acting contact mechanism that provides sensitive actuation and audible feedback. The switch's compact design allows quick installation in tight spaces, supported by options for illuminated and non-illuminated caps, various LED colors, and mounting types. Suitable for applications requiring reliable electrical performance and long mechanical life, it conforms to safety standards with UL and CSA certification options. The switch's robust construction ensures long-lasting performance under various environmental conditions.
NKK Switches UB15KKG01NE Low Profile Pushbutton Switch Specifications:
- Electrical Capacity: 5A @ 125/250V AC or 5A @ 30V DC
- Electrical Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts; 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary; 200,000 operations minimum for alternate action
- Nominal Force: 1.9N for square and rectangular single-pole models, 2.55N/3.1N for double pole models
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Materials: Housing/Bezel - UL94V-0 glass fiber reinforced polyamide; Contacts - silver alloy or copper with gold plating; Terminals - phosphor bronze
- Operating Temperature Range: -20°C through +70°C for non-illuminated, -25°C through +50°C for illuminated models
- Standards: UL Recognized, CSA Certified options available with markings
- Environmental: Humidity resistance 96 hours @ 40°C; Vibration and shock resistance as per standards
Buy the NKK Series UB Low Profile Pushbuttons: UB15KKG01NE
Order the NKK Series UB low-profile illuminated pushbutton switch online today for dependable performance in compact spaces. Featuring bright LEDs in various colors, this switch is easy to install, durable, and compliant with UL and CSA standards. Ideal for electronic control panels requiring space-saving design, high electrical capacity, and long mechanical life. Enhance your equipment with reliable operation and excellent visibility. Purchase now to ensure you have a high-quality switch that meets professional standards and performs under demanding conditions, ensuring optimal control and safety.
Get NKK Series UB15KKG01NE low-profile illuminated switch today—built for space-efficient control with bright LEDs and long-lasting durability.
