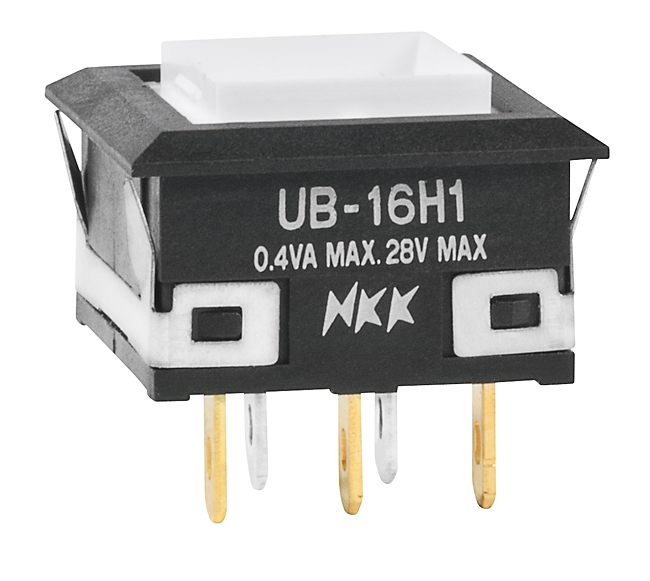

NKK Switches UB16KKG015D Low Profile Pushbutton
The low-profile illuminated pushbutton switch is designed for PCB mounting and soldering, ideal for control panels and user interfaces. Its compact, snap-acting mechanism provides sensitive actuation with audible feedback, limiting arcing and enhancing electrical longevity. Available in various LED colors, including bright and super bright options, with full face or spot illumination. Its durable construction features polyamide housing with UL94V-0 rating, stainless steel caps, and phosphor bronze contacts. Suitable for applications requiring 5A at 125/250V AC, with high insulation resistance and dielectric strength, ensuring reliable operation in demanding environments.
NKK Switches UB16KKG015D Low Profile Pushbutton Specifications:
- Poles: Single Pole
- Mounting Type: PCB Mounting, Snap-in Frame
- LED Colors: Red, Amber, Green, White, Blue
- LED Voltage Max: 28V AC/DC
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA Max @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 min between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Operating Temperature Range: -25°C to +50°C for Illuminated, -20°C to +70°C for Non-illuminated
- Materials: Polyamide UL94V-0 housing, stainless steel cap, phosphor bronze contacts
- Travel: Total travel approximately 2.3mm
- Pretravel: 1.7mm, Overtravel: 0.6mm
- Certifications: UL Recognized, CSA Certified (when ordered accordingly)
- Soldering: Wave and manual soldering profiles specified
- Environmental Resistance: 96 hours at 40°C, Vibration and shock resistant
- Switch Size: Approximate 24mm x 24mm footprint
Buy the NKK Series UB Low Profile Pushbuttons: UB16KKG015D
Enhance your control panel designs with the NKK Low Profile Pushbutton switch. Featuring bright LEDs, durable polyamide housing, and high electrical and mechanical endurance, this switch is perfect for demanding industrial applications. Its compact size allows easy integration into tight spaces, while certifications ensure safety and reliability. Whether you need illuminated signaling or tactile feedback, these switches provide consistent performance. Order online now to ensure your project benefits from NKK’s trusted quality and quick shipping times.
Order your NKK Series UB16KKG015D low-profile illuminated pushbutton today and enhance your control panels with reliable, compact switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKG015D?
You can click on the BUY or RFQ button to purchase UB16KKG015D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKG015D?
You can download the UB16KKG015D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKG015D?
NKK Switches
