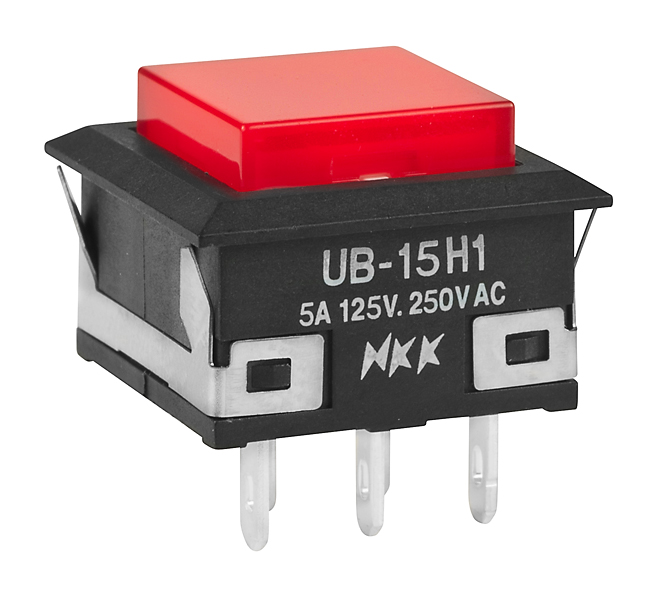

NKK Switches UB15KKW015CCC Illuminated Pushbutton Switch
The low-profile illuminated pushbutton switch is designed for compact, panel-mount, and PCB applications. It features integrated bright LED options in multiple colors, including red, amber, green, blue, and white. The switch offers quick-make, quick-break with sensitive actuation, and an audible click for reliable operation. Constructed with durable materials like polycarbonate and stainless steel, it withstands harsh environmental conditions. The switch complies with UL and CSA standards, supports up to 5A at 125/250V AC, and has a mechanical life of over one million cycles, making it ideal for industrial control and automation systems.
NKK Switches UB15KKW015CCC Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute; 1,500V AC between contacts and case
- Mechanical Life: Over 1,000,000 operations
- Nominal Operating Force: 1.9N for single pole, 2.55N for double pole models
- Travel: Pretravel 1.7mm, Overtravel 0.6mm, Total travel 2.3mm
- Housing Material: UL94V-0 polyamide
- Operating Temperature Range: -20°C to +70°C
- LED Colors & Ratings: Red, Amber, Green, White, Blue; Peak Forward Current 30mA
- Mounting: PCB mount, snap-in, panel mounting options
- Standards & Certifications: UL recognized, CSA certified
- Dimensions: Length varies with model, typical 15.24mm to 20.32mm for switch body
Buy the NKK UB15KKW015CCC – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK illuminated pushbutton switch online today—engineered for durability and precise responsiveness. Ideal for industrial automation, control panels, and equipment, this switch features high electrical capacity, multiple LED color options, and certifications to meet rigorous standards. Its compact design makes it suitable for tight spaces, while the long mechanical life ensures reliable operation in demanding environments. Order now and enhance your control system with this high-quality, easy-to-install switch that guarantees performance and longevity.
Get NKK UB15KKW015CCC today—built for precision with durable construction for industrial control needs.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW015CCC?
You can click on the BUY or RFQ button to purchase UB15KKW015CCC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW015CCC?
You can download the UB15KKW015CCC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW015CCC?
NKK Switches
