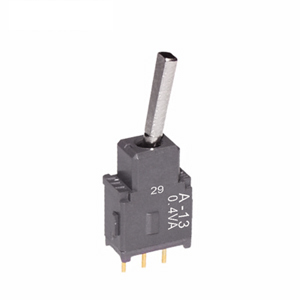

NKK Switches A13EP Electronic Toggle Switch
This is a subminiature toggle switch designed for electronic applications. It offers reliable switching performance in a compact form factor, suitable for space-constrained designs. Crafted with durable materials, it features sealed body construction to prevent contact contamination and ensure consistent operation. Ideal for low-voltage, low-current logic-level circuits in various electronic devices, these switches provide long mechanical and electrical life, with enhanced contact stability and smooth actuation. Perfect for demanding automation, control systems, and compact electronic assemblies requiring space-efficient switches with high reliability and resistance to environmental factors.
NKK Switches A13EP Electronic Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained) for .394” toggles; 2.73N (momentary), 1.84N (maintained) for others
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Materials & Finishes: Glass fiber reinforced polyamide, nickel plated brass, tin plated phosphor bronze, brass with gold plating
- Environmental Data: -30°C to +85°C, 90-95% humidity for 240 hours at 40°C, vibration resistance at 10-55Hz, shock 50G
- PCB Processing: Wave soldering recommended, manual soldering, and automated cleaning compatible
- Standards & Certifications: Designed for low-voltage, low-current logic-level circuits, UL recognition and CSA certification not tested
Buy the Buy Generic Electronic Toggle Switch Part Number A13EP Online
Purchase the reliable electronic toggle switch online today. Engineered for compact spaces, it features sealed body protection against contaminants, ensuring consistent performance. Perfect for low-voltage electronic circuits and automation systems, this switch offers long mechanical and electrical lifespan, easy PCB mounting, and resistance to harsh environments. Its durable construction and high contact stability make it ideal for demanding applications requiring space efficiency and high reliability. Buy now to enhance your electronics with a dependable, space-saving toggle switch designed for ease of integration and long-term use.
Get Generic A13EP toggle switch today—engineered for space-saving, reliable electronic switching with sealed construction and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches A13EP?
You can click on the BUY or RFQ button to purchase A13EP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13EP?
You can download the A13EP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13EP?
NKK Switches
