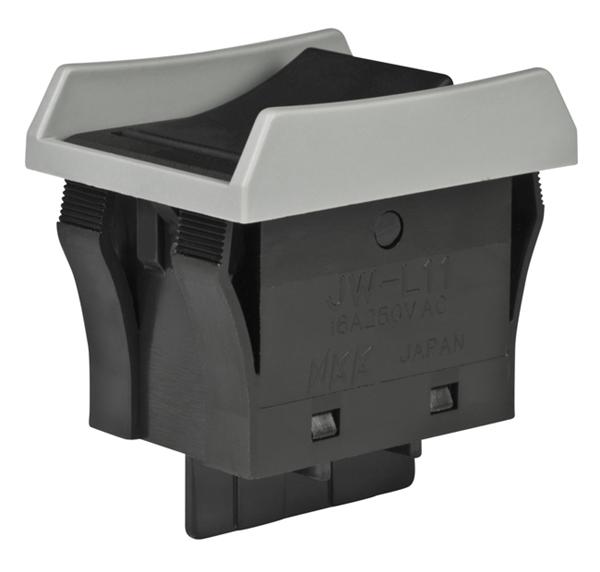

NKK Switches JWL11BAAH Power Rocker Switch
The power rocker switch offers reliable switching performance with high inrush current handling of 10 and 16 Amps, suitable for industrial applications. Constructed with heat-resistant UL94V-0 resin housing and sealed terminals to prevent dust and moisture ingress. Features include high dielectric strength, vibration and shock resistance, and compliance with UL, CSA, and VDE standards. Panel mount design with quick-connect terminals makes installation straightforward. Available with panel seal versions meeting IP67, ideal for demanding environments requiring durable electrical components.
NKK Switches JWL11BAAH Power Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 10A @ 125/250V AC, 16A @ 125/250V AC, 10A @ 30V DC, 5A @ 72V DC
- Contact Resistance: Max 10 milliohms for JWM & JWMW, Max 20 milliohms for JWL & JWLW
- Insulation Resistance: Min 1,000 megohms @ 500V DC
- Dielectric Strength: Min 2,000V AC between contacts, 4,000V AC between contacts and case
- Mechanical Life: 25,000 operations
- Electrical Life: 25,000 operations
- Operating Temperature Range: -25°C to +70°C for JWM & JWL, -25°C to +85°C for JWMW & JWLW
- Housing Material: Polyphenylene ether (UL94V-0)
- Contact Material: Silver alloy with silver plating
- Terminals: Brass with silver plating
- Panel Seal: IP67 of IEC60529 standards (JWMW & JWLW models)
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm for 2 hours
- Shock Resistance: 50G acceleration in six directions
- Soldering Specifications: Manual soldering, Profile A
- Standards & Certifications: UL, CSA, VDE approvals, UL94V-0 flammability standards
- Size & Dimensions: Refer to typical dimensions shown in datasheet for accurate panel cutout
Buy the NKK Series JWL Power Rocker Switch 16A: Reliable Industrial Switch Part Number JWL11BAAH
Order the durable NKK Series JW power rocker switch online today. Designed to handle high inrush currents with sealed terminals and IP67 rating, it ensures long-lasting performance in industrial and harsh environments. Easy to install, compliant with UL, CSA, and VDE standards, and with a robust construction, this switch offers reliable operation for various switching applications requiring robust and dust-resistant components. Get yours now to experience quality and dependability that stands the test of demanding conditions.
Get NKK Series JW power rocker switch today—built for precision, durability, and high inrush current handling in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches JWL11BAAH?
You can click on the BUY or RFQ button to purchase JWL11BAAH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL11BAAH?
You can download the JWL11BAAH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL11BAAH?
NKK Switches
