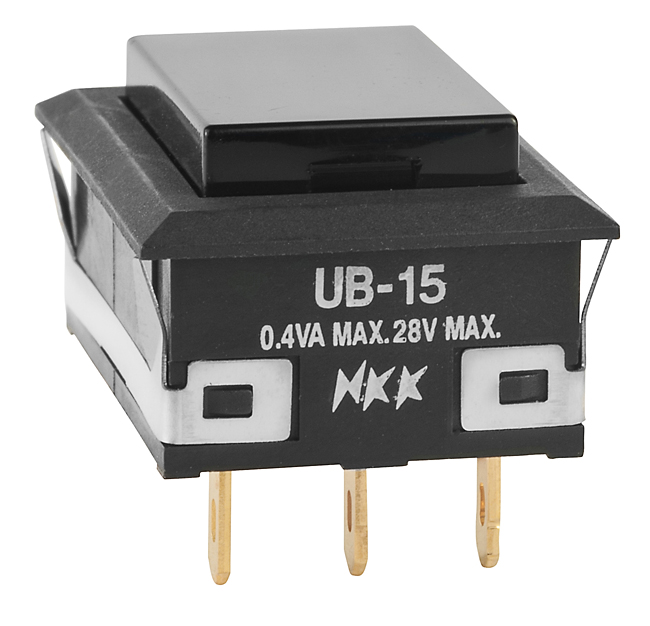

NKK Switches UB15NKG01NA Low Profile Switch
This is a low-profile illuminated switch designed for PC board mounting, featuring integrated LED illumination for enhanced visibility. It is compact, sturdy, and suitable for various control panel applications, with options for different LED colors, including bright white, red, green, amber, and blue. The switch has durable materials like polycarbonate and stainless steel, with a mechanical life of at least 1,000,000 operations. It supports a maximum load of 5A at 125/250V AC and offers quick-make, quick-break operation for reliable switching in space-constrained environments.
NKK Switches UB15NKG01NA Low Profile Switch Specifications:
- Poles & Circuits: SPDT
- Light Source: Bright LED with multiple color options (Red, Amber, Green, White, Blue)
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Mechanical Life: 1,000,000 operations minimum
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Housing Material: UL94V-0 polycarbonate
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Operating Temperature Range: -25°C to +50°C (-13°F to +122°F)
- Environmental Ratings: 95% humidity for 96 hours, shock of 50G
- Soldering Profile: Wave soldering and manual soldering as per specifications
- Certifications: UL recognized, CSA certified
Buy the Buy NKK Series UB Low Profile Pushbutton Part Number UB15NKG01NA Online
Enhance your control panels with NKK's low profile illuminated switch, designed for PC board mounting. Featuring bright, energy-efficient LEDs in various colors, it offers exceptional durability with a mechanical life of 1 million operations. Suitable for tight spaces, it supports high electrical capacity and fast switching. Easy to install via wave or manual soldering, this switch is ideal for industrial, commercial, and automation applications. Purchase online now for dependable performance and space-saving design.
Order your NKK Series UB Micro Switch with integrated LED today and ensure reliable, space-efficient control solutions for your projects.
