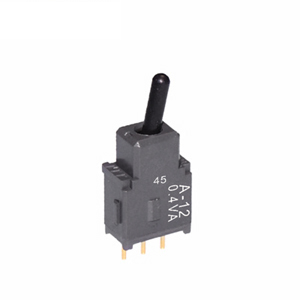

NKK Switches A12J2P Single Pole Double Throw Switch
This is a Single Pole Double Throw SPDT switch with ON-ON contact configuration designed for low-voltage, logic-level circuits. It features a compact, .248-inch (6.3mm) terminal spacing, a black antistatic plastic body, and nickel-plated brass terminals for enhanced durability. The switch operates with a tactile toggle, providing reliable switching for electronic applications. It withstands environmental stresses such as humidity, temperature, and mechanical shocks, making it suitable for PCB mounting in space-constrained automation and control systems.
NKK Switches A12J2P Single Pole Double Throw Switch Specifications:
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute between contacts and case
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.18N (maintained)
- Material: Brass with bright nickel finish
- Body Material: Black glass fiber reinforced polyamide
- Terminal Spacing: .248 inches (6.3mm)
- Temperature Range: -30°C through +85°C (-22°F through +185°F)
- Soldering: Wave soldering profile recommended; manual soldering with Profile B
- Environmental Resistance: 90-95% humidity for 240 hours, vibration, shock resistance
- Certifications: Not UL or CSA tested
Buy the Buy NKK Switches Single Pole Double Throw Part Number A12J2P Online
Purchase the NKK Switches A12J2P today for a dependable, space-efficient SPDT switch designed for low-voltage logic circuits. Its antistatic black plastic body and nickel-plated brass terminals ensure durability and stability in electronic assemblies. Perfect for PCB mounting, it withstands environmental stresses like humidity, temperature fluctuations, and shocks, making it ideal for automation, control systems, and electronic devices requiring precise switching capabilities. Order online now to benefit from quick delivery and competitive pricing.
Get NKK Switches A12J2P today—built for reliable switching and space-saving performance in electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches A12J2P?
You can click on the BUY or RFQ button to purchase A12J2P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12J2P?
You can download the A12J2P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12J2P?
NKK Switches
