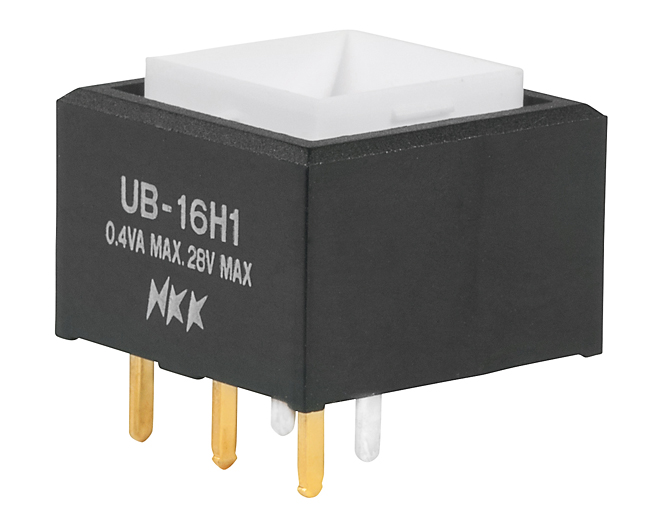

NKK Switches UB16SKG035F Illuminated Control Switch
This low-profile illuminated pushbutton switch offers reliable actuation with full face or spot illumination available in multiple LED colors. Designed for compact spaces, it features PCB mountability and solder terminals, ensuring versatile installation. The switch's durable construction includes a stainless steel spring-loaded guard option and high environmental resistance, such as operating temperature range from -25°C to +50°C and humidity tolerance. Suitable for industrial and electronic control applications, it provides quick-make, quick-break contact mechanisms with long electrical and mechanical life, certified for UL and CSA standards. Ideal for control panels, machinery, and automation systems seeking dependable user interfaces.
NKK Switches UB16SKG035F Illuminated Control Switch Specifications:
- Switch Type: Illuminated pushbutton
- Mounting Options: PCB mount, solder terminals
- LED Colors: Red, amber, green, white, blue
- LED Circuit Voltage: 28V AC/DC max
- LED Forward Voltage: 1.85V to 3.2V
- Maximum Current: 20-30mA per LED
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 to 1,000,000 operations, depending on load
- Operating Temperature Range: -25°C to +50°C
- Humidity Tolerance: 50-95% for 96 hours
- Switch Rating: 5A @ 125/250V AC; 0.4VA @ 28V DC
- Contact Resistance: 50 milliohms (silver) or 100 milliohms (gold)
- Insulation Resistance: Minimum 200 megohms at 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case
- Dimensions: Compact, with specific sizes as per model
- Certifications: UL Recognized, CSA Certified when ordered accordingly
Buy the NKK Series UB – Reliable Control Switches for Industrial Applications
Purchase your NKK Series UB low-profile illuminated pushbutton switch online today and ensure your projects benefit from high-quality, reliable control components. Designed for easy installation with PCB or solder terminals, it features bright LED illumination in multiple colors for visibility. Rely on its long electrical and mechanical lifespan to reduce maintenance and downtime. Certified by UL and CSA for safety standards, this switch is ideal for industrial, automation, and control panel applications. Get yours now for a trusted and durable solution that meets industrial performance demands.
Order your NKK Series UB low-profile illuminated pushbutton switch today and enhance your control systems with dependable, certified performance.
Frequently Asked Questions
Where can I buy NKK Switches UB16SKG035F?
You can click on the BUY or RFQ button to purchase UB16SKG035F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16SKG035F?
You can download the UB16SKG035F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16SKG035F?
NKK Switches
