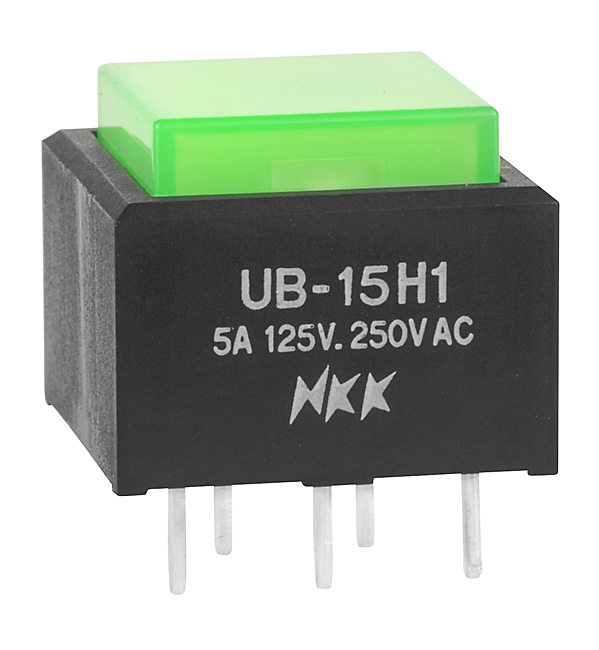

NKK Switches UB15SKW035FFJ Low Profile Pushbutton Switch
The low-profile, illuminated pushbutton switch offers compact PC board mounting with integral LED illumination in various colors including red, green, blue, white, and amber. It is ideal for space-constrained applications, featuring a snap-acting contact mechanism for sensitive operation, quick-make and break switching, and tactile feedback. The switch supports multiple circuit options such as momentary and alternate action. With durable materials like polycarbonate and stainless steel, it ensures long electrical and mechanical life, meeting UL, cULus, and CSA standards, and providing reliable operation in industrial settings.
NKK Switches UB15SKW035FFJ Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, Double Pole options
- Switch Rating: 5A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC 1 minute between contacts, 1,500V AC 1 minute between contacts and case
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for alternate
- Electrical Life: 100,000 operations at resistive load
- Operating Temperature: -20°C to +50°C, -25°C to +50°C for illuminated models
- Contact Force: 1.9N to 3.1N depending on model
- Travel: Pretravel 0.067” (1.7mm), overtravel 0.024” (0.6mm), total 0.091” (2.3mm)
- Housing Material: UL94V-0 polycarbonate
- Mounting Style: PCB snap-in
- LED Colors: Red, Amber, Green, White, Blue with various lens/diffuser options
- Certification: UL, cULus, CSA recognition when ordered with marking
Buy the Buy NKK Switches Low Profile Pushbuttons Part Number UB15SKW035FFJ Online
Purchase the compact and durable low-profile illuminated pushbutton switch online to enhance your industrial control systems. With multiple LED color options, snap-acting contacts, and certified standards, this switch ensures reliable operation and easy integration into tight spaces. Designed for PCB mounting, it offers long mechanical life, quick response, and tactile feedback for precise control. Order now to improve efficiency with a high-quality, space-saving switch that meets global safety standards and is ideal for demanding environments.
Buy NKK Switches UB15SKW035FFJ now and experience reliable performance and space-saving design in your control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches UB15SKW035FFJ?
You can click on the BUY or RFQ button to purchase UB15SKW035FFJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15SKW035FFJ?
You can download the UB15SKW035FFJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15SKW035FFJ?
NKK Switches
