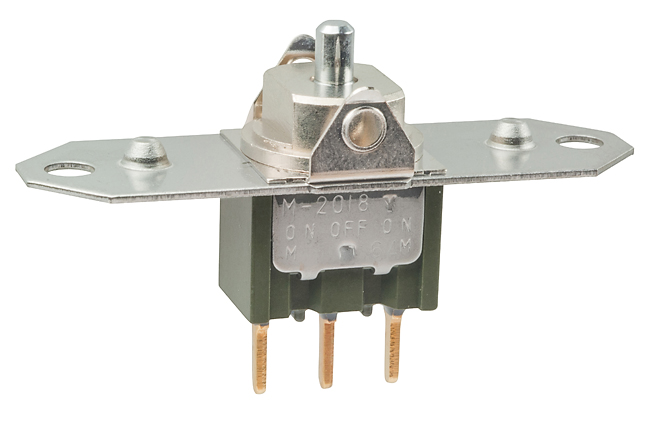

NKK Switches M2018TYG03 Miniature Rocker Switch
This miniature rocker switch is ideal for precise electronic control, featuring a compact design for seamless integration into various devices. It offers reliable switching performance with dual ratings and high dielectric strength, suited for both logic and power circuits. The switch's robust construction includes epoxy sealed terminals and a UL 94V-0 flame rating, ensuring safety and durability. Its versatile mounting options, including flat frame and PCB, make it suitable for panel or subpanel installations, providing dependable operation in demanding environments. Perfect for automation, control panels, and electronic devices requiring precision and durability.
NKK Switches M2018TYG03 Miniature Rocker Switch Specifications:
- Poles & Circuits: SPDT, DPDT, 3PDT, 4PDT with various configurations
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact to case for 1 min
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: 25,000 for silver, 50,000 for gold, at rated currents
- Operating Temp Range: -30°C to +85°C
- Vibration & Shock: Compliant with standards, tested for 10-55Hz vibration and 50G shock
- Material: Polyamide case, stainless steel actuator, phosphor bronze contacts with silver or gold plating
- Mounting: Flat frame, snap-in, PCB options, with optional hardware kits
- Certifications: UL 94V-0 flame rating, recognized or certified per file numbers
- Soldering: Wave or manual soldering protocols, actuator in OFF position during soldering
- Environmental: Humidity 90–95% for 96 hrs @ 40°C, capable of withstanding exposure to various environmental conditions
Buy the NKK Series M Miniature Rocker Switch: M2018TYG03
Discover the reliable NKK Series M miniature rocker switch M2018TYG03 for precise electronic control. Its durable construction, dual-rated contacts, and versatile mounting options make it ideal for automation, control panels, and electronic devices. Designed with epoxy sealed terminals, UL 94V-0 flame rating, and high dielectric strength, it ensures safety and longevity even in demanding environments. Whether for panel or PCB mounting, this switch offers dependable performance, making it the perfect choice for professional electronics and industrial applications.
Order your NKK Series M miniature rocker switch M2018TYG03 today and equip your electronic projects with durable, high-performance control switch.
Frequently Asked Questions
Where can I buy NKK Switches M2018TYG03?
You can click on the BUY or RFQ button to purchase M2018TYG03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018TYG03?
You can download the M2018TYG03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018TYG03?
NKK Switches
