NKK Switches UB16NBKW015C Low Profile Pushbutton Switch
This low-profile illuminated pushbutton switch is designed for easy installation on PCBs and through-hole soldering, featuring bright LEDs for excellent visibility and reliable operation across electronic systems. It supports various illumination colors, with options like red, white, and green, and offers quick-make, quick-break contact mechanisms that limit arcing and extend electrical life. Suitable for compact spaces, it includes optional accessories like protective guards and dust covers, making it ideal for industrial, automation, and control panel applications, ensuring durability and performance in demanding environments.
NKK Switches UB16NBKW015C Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, with options for momentary and alternate action
- Electrical Ratings: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case for 1 minute
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (resistive load, 3A, 125V AC)
- Electrical Life: 100,000 operations for silver contacts, 200,000 for gold
- Nominal Operating Force: 1.9N for single & double pole, square; 2.55N and 3.1N for rectangular models
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total travel 0.091” (2.3mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Environmental Range: -25°C to +50°C (illuminated), -20°C to +70°C (non-illuminated), humidity 50G for shocks
- Installation: Panel thickness of 0.039” to 0.126” (1.0mm to 3.2mm), snap-in mounting with optional protective guards
- Standards & Certifications: UL Recognized, CSA Certified, compliant with flammability standards

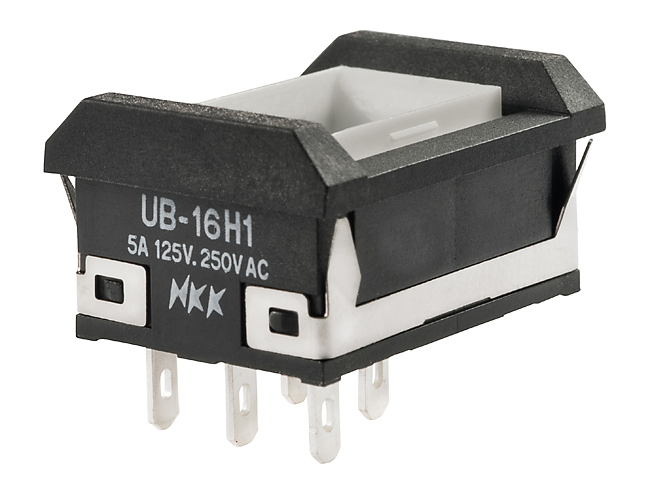

Buy the Buy NKK UB16NBKW015C Low Profile Illuminated Pushbutton Switch Part Number UB16NBKW015C
Order the NKK Series UB low-profile illuminated pushbutton switch online today and enjoy durable performance, easy PCB mounting, and bright LED illumination for clear visibility in your control panels. Designed for quick operation and long life, these switches support various colors such as red, white, green, and blue, and include options for both momentary and alternate actions. Enhance your industrial automation projects with these compact, reliable switches available for fast online purchase with prompt delivery.
Buy NKK Series UB low-profile illuminated pushbutton now and experience unmatched reliability and performance in industrial controls and automation.
Frequently Asked Questions
Where can I buy NKK Switches UB16NBKW015C?
You can click on the BUY or RFQ button to purchase UB16NBKW015C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16NBKW015C?
You can download the UB16NBKW015C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16NBKW015C?
NKK Switches
