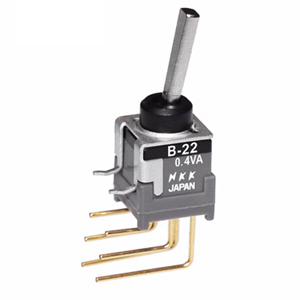

NKK Switches B22EV Subminiature Toggle Switch
A compact and reliable subminiature toggle switch designed for PCB mounting applications in low-voltage, low-current logic circuits. Equipped with static discharge prevention features and a sealed body construction, it ensures contact stability and resistance to contamination. Ideal for space-constrained electronic devices, it offers switch positions such as ON, OFF, and various poles and circuits configurations. The switch's epoxy sealed terminals facilitate easy soldering and cleaning, meeting high standards for durability and safety in industrial and consumer electronics. Its design emphasizes long-term performance and operational reliability in demanding environments.
NKK Switches B22EV Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations (certain models), 50,000 for others
- Nominal Operating Force: 1.47N for long paddle toggles, 2.72N for short paddle toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, phosphor bronze, copper alloy
- Operating Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz with specified amplitude
- Shock Resistance: 50G acceleration
- Mounting Torque: 30 ~ 3.98 Ib*in for threaded bushings
- Soldering: Wave and manual soldering compatible, with recommended profiles
- Certifications: UL9AV-0 (not tested for UL recognition or CSA)
- Environmental Sealing: Total body and terminal sealing for contamination prevention
- Standards: Designed for durability and safety in low-voltage applications
Buy the Buy NKK Series B Process Sealed Subminiature Antistatic Toggle Switch B22EV Online
Purchase the NKK B22EV subminiature toggle switch online today for reliable performance in space-constrained electronics. Featuring static discharge prevention, sealed body construction, and epoxy sealed terminals, it simplifies soldering and cleaning processes. Ideal for low-voltage, low-current logic circuits, this switch ensures long-lasting durability and stability in demanding environments. Its compact size with various circuit configurations makes it perfect for industrial, consumer, and embedded electronic applications. Order now to upgrade your electronic projects with superior quality and dependable operation.
Get NKK B22EV today—built for precise switching in compact electronic devices with static discharge protection and sealed construction.
