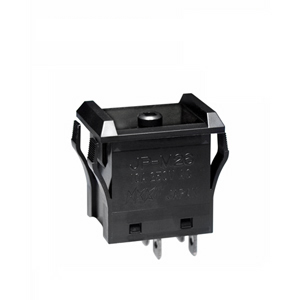

NKK Switches JPM26B Power Pushbutton Switch
The power push button switch is designed for industrial and electronic use, offering reliable performance and easy operation. It features a snap-action contact mechanism with silver alloy contacts, housing made from heat-resistant polyamide UL94V-0, and a barrier flange for insulation. Certified for TV-5 and TV-8 ratings, it supports resistive loads of 10A at 125/250V AC and 16A at 125/250V AC respectively, with a mechanical life of 25,000 operations. Suitable for various control applications, it includes both single and double pole configurations with snap-action logic, ensuring durability and safety in demanding environments.
NKK Switches JPM26B Power Pushbutton Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JPM models, 16A @ 125/250V AC for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC between contacts for 1 minute; 4,000V AC between contacts & case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Operating Temp Range: -10°C through +70°C (+14°F through +158°F)
- Humidity Resistance: 90–95% for 96 hours @ 40°C
- Vibration: 10–55Hz with peak-to-peak amplitude of 1.5mm for 1 minute
- Shock: 50G (490m/s²), tested in 6 directions with shocks
- Housing Material: Polyamide UL94V-0
- Contacts: Silver alloy, stationary contacts in polyphenylene sulfide UL94V-0
- Terminals: Brass with silver plating, epoxy sealed
- Compliance: UL, VDE approved
- Assembly: Suitable for panel mounting with soldering or quick connect terminals, panel thickness range 0.5mm to 4.0mm
Buy the NKK Series JP Power Pushbutton Switch: JPM26B
Order the NKK Power Pushbutton Switch JPM26B online and experience high performance, durable construction, and certified safety features ideal for industrial control panels. This switch supports resistive loads up to 10A and 16A, includes snap-action contacts, and features a heat-resistant housing. Easy to install with panel mounting options. Designed with insulation barriers and sealed terminals to prevent dust and flux intrusion, ensuring reliable operation even in harsh environments. Perfect for automation systems, machinery, and equipment requiring reliable switching solutions.
Get NKK JPM26B today—built for industrial reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches JPM26B?
You can click on the BUY or RFQ button to purchase JPM26B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPM26B?
You can download the JPM26B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPM26B?
NKK Switches
