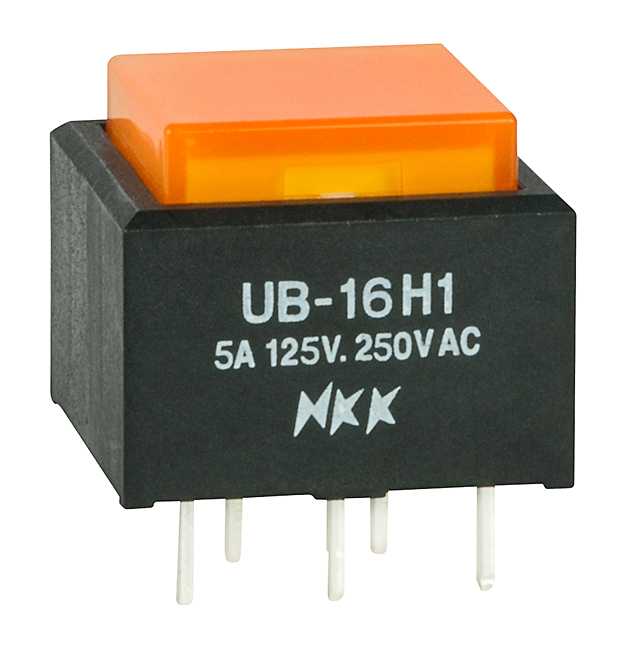

NKK Switches UB16SKW035DDD Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for easy installation with both printed circuit board (PCB) mounting and solder connections. Suitable for various electronic applications requiring a compact and visible activation button.
NKK Switches UB16SKW035DDD Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, Double Pole, SPDT
- Max Power Rating: 5A at 125/250V AC or 0.4VA at 28V DC
- Electrical Resistance: Silver contacts: max 50 milliohms; Gold contacts: max 100 milliohms
- Insulation Resistance: Minimum 200 megohms at 500V DC
- Dielectric Strength: 1000V AC contact to contact, 1500V AC contact to case for 1 minute
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for resistive load
- Operating Temperature: -20°C to +70°C
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Contact Material: Silver alloy or copper with gold plating
- Switch Terminals: Epoxy sealed to lock out flux and contaminants
- LED Specifications: Bright or super bright LEDs in various colors, forward voltage 1.85V to 3.2V, current 20-30mA
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Mounting: Snap-in, PCB mounting
- Certifications: UL recognized, CSA certified
Buy the NKK UB16SKW035DDD – Reliable Illuminated Pushbutton for Industrial Applications
Experience the convenience of online ordering with this high-quality illuminated pushbutton switch. Designed for easy installation via PCB or soldering, it offers long-lasting durability and reliable performance. Ideal for space-constrained applications, it features bright LEDs in multiple colors, high electrical and mechanical life, and compliance with UL and CSA standards. Secure your electronic projects or industrial control systems with this versatile, compact switch. Buy now and ensure your equipment operates smoothly and efficiently with a proven, trusted component.
Get NKK UB16SKW035DDD today—built for precision, durability, and space-saving operation in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches UB16SKW035DDD?
You can click on the BUY or RFQ button to purchase UB16SKW035DDD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16SKW035DDD?
You can download the UB16SKW035DDD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16SKW035DDD?
NKK Switches
