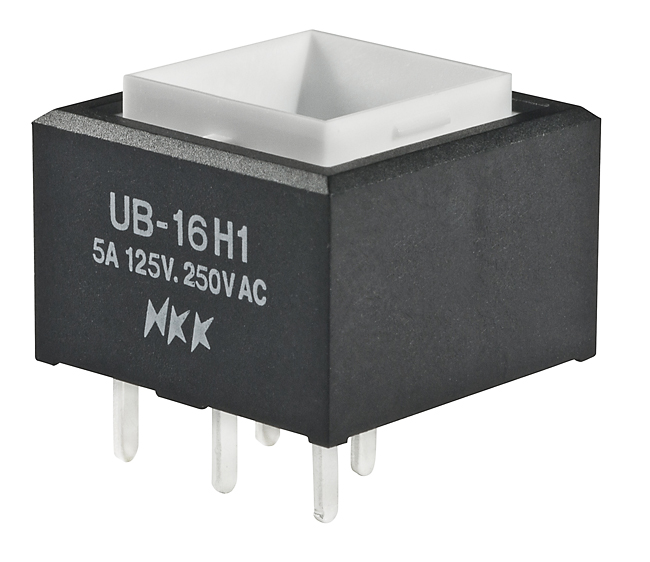

NKK Switches UB16SKW035F Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch designed for PCB mounting and soldering applications. Ideal for user interfaces requiring quick activation with visual indication.
NKK Switches UB16SKW035F Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: SPDT
- Mounting Type: PCB Mounting, Snap-in Mount
- LED Colors & Specifications: Red, Amber, Green, White, Blue; Bright or Super Bright LEDs; Forward Voltage: 1.85-3.2V; Max Reverse Voltage: 5V; Peak Current: 25-30 mA
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 MΩ min @ 500V DC
- Dielectric Strength: 1,000V @ 1 min between contacts, 1,500V @ 1 min between contacts & case
- Mechanical Life: 1,000,000 operations minimum
- Operating Temperature Range: -25°C to +50°C for Illuminated, -20°C to +70°C for Non-illuminated
- Rugged Housing Material: UL94V-0 polyamide with glass fiber reinforcement
- Pushbutton Travel: Total travel approximately 2.3mm, Pretravel 1.7mm, Overtravel 0.6mm
- Environmental: Humidity 90-95% for 96 hours @ 40°C, Vibration 3 Hz for 2 hours
- Soldering & Cleaning: Wave soldering compatible, manual soldering profile available, hand cleaning with alcohol-based solutions
- Certifications: UL Recognized, CSA Certified (order with markings)
