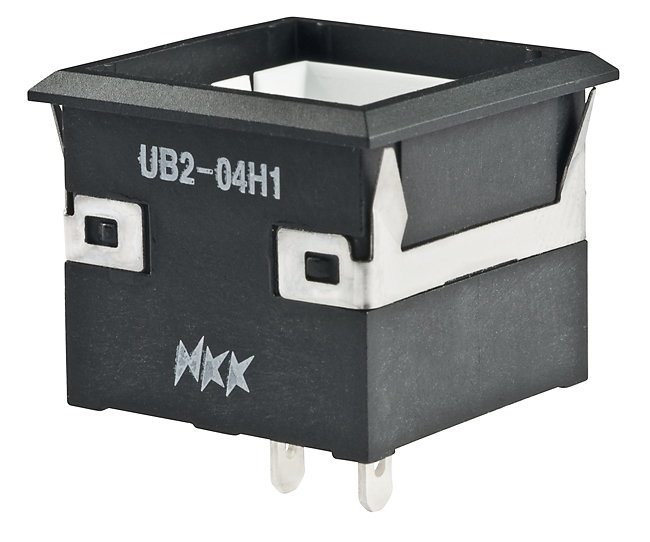

NKK Switches UB204KW035F LED Indicator
This indicator component provides clear visual status indication in electronic circuits, featuring a compact design suitable for various applications. It offers bright and super bright LED options in multiple colors, with different lens and diffuser materials, to ensure high visibility. The indicator supports PCB and snap-in mounting types, includes multiple cap styles with transparent or colored diffusers, and is designed for easy installation in control panels. Its specifications include operating voltage, current, and temperature ratings tailored for reliable performance in industrial and electronic environments.
NKK Switches UB204KW035F LED Indicator Specifications:
- LED Colors: Red, Amber, Green, White, Blue
- Forward Peak Current: 30 mA (Bright, Super Bright) or 25 mA (Super Bright)
- Typical Forward Current: 20 mA
- Forward Voltage: 1.85 V (Red), 2.0 V (Amber), 2.1 V (Green), 3.2 V (White, Blue)
- Reverse Peak Voltage: 5 V
- Current Reduction Rate Above 25°C: 0.40-0.46 mA/°C
- Ambient Temperature Range: -25°C to +50°C
- Lens & Diffuser Material: Polycarbonate, Glossy or Textured Finish
- Cap Types: Full Face Illuminated, Spot, Tactile with various colors
- Mounting Types: PCB Mounting, Snap-in Mount with built-in bezel or side barriers
- Panel Thickness Compatibility: 1.0 to 3.2 mm
- Dimensions vary by model, typical sizes include square 12mm, rectangular 15mm x 20mm
- LEDs are integral parts, not available separately
Buy the NKK Series UB Indicator: UB204KW035F
Purchase the NKK UB Indicator online today for its reliable performance, versatile mounting options, and vibrant LED colors. This compact indicator is ideal for providing clear visual status signals in control panels and electronic devices. With various cap styles, lens and diffuser options, and support for PCB or snap-in mounting, it ensures easy installation and long-lasting operation. Elevate your system’s visibility and control accuracy by ordering this high-quality indicator device now.
Buy NKK UB204KW035F indicator now and experience unmatched reliability and high visibility in your electronic or control applications.
Frequently Asked Questions
Where can I buy NKK Switches UB204KW035F?
You can click on the BUY or RFQ button to purchase UB204KW035F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB204KW035F?
You can download the UB204KW035F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB204KW035F?
NKK Switches
