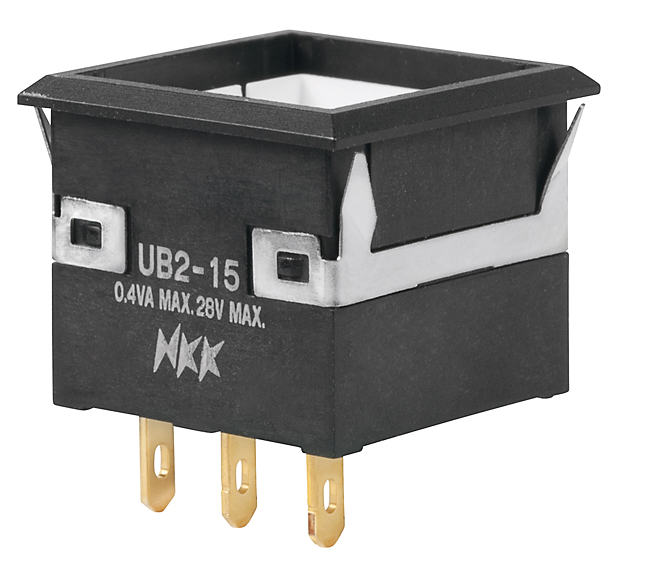

NKK Switches UB215KKG01N Pushbutton Switch
A low-profile illuminated pushbutton switch suitable for printed circuit board (PCB) mounting and soldering. Designed for easy operation, quick actuation, and reliable LED illumination, this switch is ideal for compact electronic devices and control panels. Features include bright LED lighting options, sealed terminals to prevent contaminants, and compliance with UL standards. The switch offers a smooth tactile response, multiple LED color choices, and a durable polycarbonate housing. Perfect for automation, industrial controls, and user interface applications requiring reliable switching in tight spaces.
NKK Switches UB215KKG01N Pushbutton Switch Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for alternate action
- Operating Temperature Range: -25°C to +50°C, with illumination optional
- Housing Material: Glass fiber reinforced polyamide UL94V-0
- Cap Material: Polycarbonate, clear or colored
- Lens & Diffuser Materials: Polycarbonate, glossy finish
- Mounting: PCB mount with snap-in or solder lug terminals, panel thickness 0.039” to 0.106”
- LED Specifications: Bright solid-color LEDs with forward voltage approx. 1.85-2.1V, current 20-30mA, in multiple color options
- Standards & Certifications: UL Recognized (File No. E44145), meets UL94V-0 flammability standard
- Additional Features: Switch with tactile feedback, sealed terminals for contamination resistance, multiple LED color and legend options
Buy the Buy NKK Switches Series UB2 Part Number UB215KKG01N Online
Purchase your NKK Series UB2 UB215KKG01N low-profile illuminated pushbutton switch online now. This reliable and durable switch features LED illumination, sealed terminals, and a compact design perfect for printed circuit board applications, automation, and control panels. Easy to install, it offers a tactile response with a long operational life, making it ideal for industrial controls and electronic devices requiring high quality switching components in tight spaces. Enhance your project’s reliability and performance by ordering today.
Order your NKK Series UB2 UB215KKG01N illuminated pushbutton today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB215KKG01N?
You can click on the BUY or RFQ button to purchase UB215KKG01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB215KKG01N?
You can download the UB215KKG01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB215KKG01N?
NKK Switches
