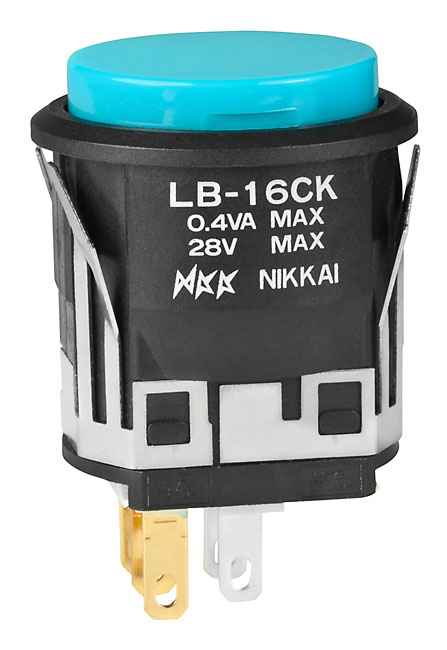

NKK Switches LB16CKW01G Illuminated Pushbutton Switch
The Standard Size Illuminated Pushbutton Switch Series LB features snap-in mounting for quick and easy installation. It includes options for LED illumination in various colors, and is constructed with durable polycarbonate and stainless steel. The switch offers reliable electrical ratings up to 3A @ 125/250V AC and 0.4VA @ 28V AC/DC. Suitable for industrial control panels, it provides long electrical life, tactile feedback, and a sealed panel for IP65 protection. Various cap and LED configurations are available to suit different application needs, making it ideal for automation, machinery, and control systems.
NKK Switches LB16CKW01G Illuminated Pushbutton Switch Specifications:
- Power Level: 3A @ 125/250V AC
- Electrical Capacity: 0.4VA @ 28V AC/DC
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: Not specified
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Materials & Finishes: Housing - UL94V-0 polyamide, Contacts - silver alloy or gold-plated copper, Base - liquid crystal polymer
- Environmental Data: Operating Temperature Range -25°C to +50°C (Illuminated), -25°C to +70°C (Nonilluminated); Humidity - 95% for 96 hours at 40°C
- Mounting: Snap-in, panel seal options available, panel thickness from 0.039” to 0.157”
- Standards & Certifications: Recognized under UL, cUL, CSA (order with markings)
Buy the NKK LB16CKW01G – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your industrial control systems with the reliable illuminated pushbutton switch from Series LB. Featuring snap-in mounting, LED indicators, and IP65 sealing, this switch withstands harsh environments and offers long electrical life. Ideal for automation, manufacturing, and machinery panels, it ensures dependable operation in various voltage and current ratings. With durable construction, easy installation, and multiple LED and cap options, purchase online now to improve your control projects with a trusted and versatile switch designed to meet rigorous industrial standards.
Order your NKK Series LB16CKW01G illuminated pushbutton today and upgrade your control panels with high-quality, durable switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKW01G?
You can click on the BUY or RFQ button to purchase LB16CKW01G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKW01G?
You can download the LB16CKW01G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKW01G?
NKK Switches
