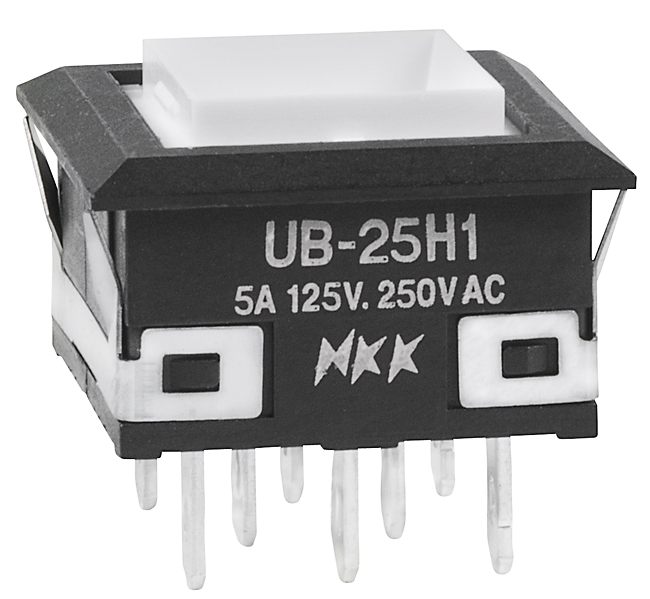

NKK Switches UB25KKW015C Low Profile Illuminated Pushbutton
A low-profile, illuminated pushbutton switch designed for easy installation with PC and solder mounting options. Suitable for applications requiring a compact and illuminated control button.
NKK Switches UB25KKW015C Low Profile Illuminated Pushbutton Specifications:
- Poles & Circuits: SPDT, Double Pole available
- Electrical Capacity: 5A @ 125/250V AC or 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1000V AC for 1 min between contacts; 1500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary
- Electrical Life: 200,000 operations minimum at 3A resistive load
- Operating Temperature Range: -25°C to +50°C for illuminated switches
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Cap & Lens Colors: Red, Amber, Green, White, Blue; Glossy polycarbonate with textured diffuser
- LED Specifications: Bright or Super Bright LEDs, 20-30mA forward current, 1.85-3.2V forward voltage
- Mounting: PCB Snap-in, built-in bezel, panel thickness 0.039'' to 0.126''
- Soldering: Profile A for manual soldering, wave soldering compatible
- Standards & Certifications: UL recognized, cULus, CSA certifications available
- Environmental Durability: Humidity 95% for 96 hours, shock 50G in 6 directions
- Size & Dimensions: Approximate switch height 15.0mm, width varies for square/rectangular caps
- Additional Features: Illuminated with full or spot face, multiple lens and diffuser options
