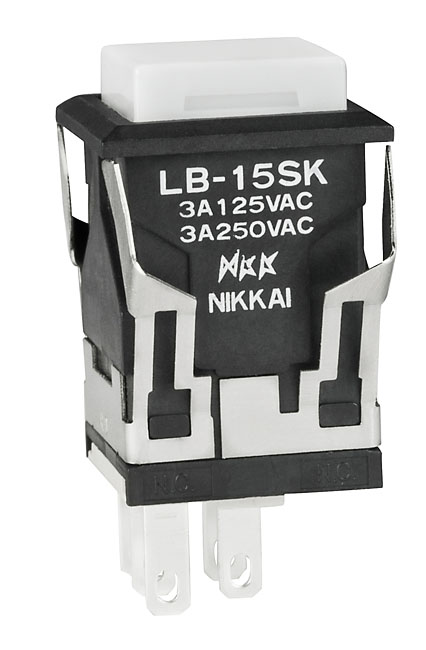

NKK Switches LB15SKW01BJ Illuminated Pushbutton
The LB Series illuminated pushbutton switch is a standard size device with snap-in mounting, designed for easy panel installation and dependable operation. It features bright LED illumination options in multiple colors, a high mechanical and electrical life, and IP65 panel sealing for durability in harsh environments. The switch includes a transparent or colored lens, optional resistors, and various contact configurations such as SPDT. It is suitable for controlling automation, industrial equipment, and control panels, ensuring reliable switch actuation with tactile feedback and robust construction from high-quality materials.
NKK Switches LB15SKW01BJ Illuminated Pushbutton Specifications:
- Housing: Polycarbonate, IP65 rated, black color
- Contact Resistance: 50 milliohms max. for silver contacts
- Insulation Resistance: 200 megaohms min. at 500V DC
- Dielectric Strength: 1,000V AC contact-to-case for 1 min, 1,500V AC contact-to-contact for 1 min
- Electrical Capacity: 3A at 125/250V AC, 0.4VA max. at 28V AC/DC
- Mechanical Life: 1,000,000 operations; Electrical Life: 200,000 operations
- Operating Temperature: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Pretravel and Overtravel: 1.5mm each; Total travel: 3.0mm
- Mounting: Snap-in, panel thickness 1.0mm to 4.0mm
- Lens Colors: Clear, Red, Amber, Green, Blue, White, Gray
- LED Colors & Voltage: Red (5V, 12V), Amber, Green, Blue (24V), with optional resistors
- Materials: Polycarbonate housing, stainless steel terminals, epoxy-sealed solder lugs
- Standards: Recognized under UL, cUL, CSA when ordered with markings
- Panel Seal: IP65 compliant with panel gasket
- Certifications: UL, CSA recognized upon ordering with markings
Buy the NKK Series LB Illuminated Pushbutton: LB15SKW01BJ
Enhance your automation and control systems with the NKK Series LB illuminated pushbutton featuring snap-in mounting, IP65 sealing, and bright LED options. Its durable polycarbonate housing and stainless steel terminals ensure long-lasting performance in harsh environments. Easy installation combined with reliable tactile feedback makes it ideal for industrial control panels, machinery, and automation projects. Compatible with multiple voltage options and available with various lens and LED colors, this switch guarantees dependable operation and excellent visibility, improving safety and functionality in your applications.
Order your NKK Series LB15SKW01BJ illuminated pushbutton today and give your control panels the dependable quality they deserve, with easy snap-in mounting and bright LED illumination.
