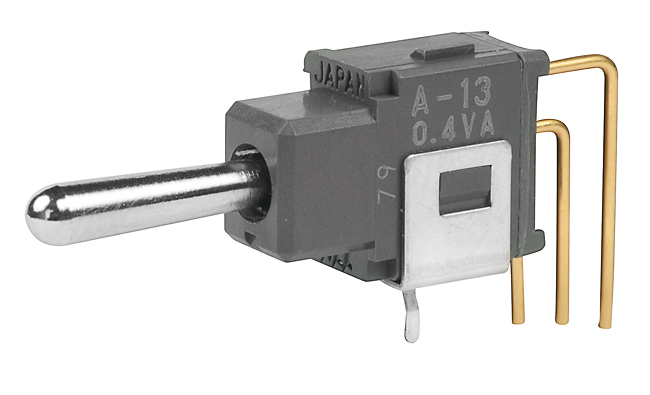

NKK Switches A13AV1 miniature toggle switch
Subminiature toggle switch designed for precise control applications. Compact in size to fit limited space requirements, offering reliable toggling functionality.
NKK Switches A13AV1 miniature toggle switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary), 1.18N (maintained), 2.73N (momentary), 1.84N (maintained)
- Materials: Glass fiber reinforced polyamide, nickel plated brass, tin plated phosphor bronze, brass with gold plating
- Environmental Conditions: -30°C to +85°C, 90-95% humidity for 240 hours, Shock: 50G, Vibration: 10-55Hz with 1.5mm amplitude
- Soldering: Wave, manual, automated cleaning compatible
Buy the NKK A13AV1 – Reliable Toggle Switch for Industrial Applications
Enhance your control panels with the high-quality miniature toggle switch. Its compact size ensures easy installation in space-limited environments. Designed for low-voltage, low-current applications, it offers exceptional reliability and durability, withstanding over 100,000 operations and harsh environmental conditions. Perfect for precise control needs in industrial machinery, automation systems, and electronic devices. Purchase online today to ensure seamless integration into your projects and benefit from quick delivery and technical support.
Order your NKK Series A13AV1 toggle switch today and give your control systems the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches A13AV1?
You can click on the BUY or RFQ button to purchase A13AV1 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A13AV1?
You can download the A13AV1 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A13AV1?
NKK Switches
